Augelite R050100

Browse Search Results
<< Previous |  Back to Search Results |  Next >>
Record 2 of 3

Name: Augelite
RRUFF ID: R050100
Ideal Chemistry: Al2(PO4)(OH)3
Locality: Rapid Creek, Yukon Territory, Canada
Source: Rock Currier
Owner: RRUFF
Description: Pale green thick tabular crystals
Status: The identification of this mineral has been confirmed by X-ray diffraction and chemical analysis
Quick search: [ All Augelite samples (3) ]
CHEMISTRY
RRUFF ID: R050100.2
Sample Description: Microprobe Fragment
Measured Chemistry: Al2.00(P1.00O4)(OH0.98F0.02)3
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Raman on the unoriented primary sample
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.
Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:

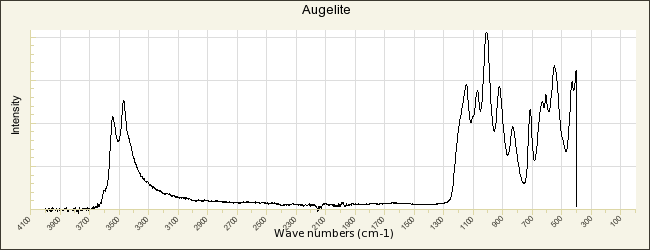

BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R050100
Wavelength:
Sample Description: Raman on the unoriented primary sample
Instrument settings: Thermo Almega XR 532nm @ 100% of 150mW
DOWNLOADS:

Raman Data (RAW) View Graph
RRUFF File
INFRARED SPECTRUM (Attenuated Total Reflectance)
RRUFF ID: R050100.1
Instrument settings: SensIR Durascope on a Nicolet Magna 860 FTIR
Resolution:
DOWNLOADS:

Infrared Data (Processed)
RRUFF File
X Min:    X Max:    X Sort:
POWDER DIFFRACTION
RRUFF ID: R050100.1
Sample Description: Powder
Cell Refinement Output: a: 13.1264(5)Å    b: 8.0040(3)Å    c: 5.0795(2)Å
alpha: 90.°    beta: 112.248(3)°    gamma: 90.°   Volume: 493.94(3)Å3    Crystal System: monoclinic
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

DOWNLOADS:

Cell Refinement Data
Cell Refinement Output Data
DIF File
X-ray Data (XY - Processed)
RRUFF File
X-ray Data (XY - RAW) View Graph
RRUFF File
X Min:    X Max:    X Sort:
REFERENCES for Augelite

American Mineralogist Crystal Structure Database Record: [view record]

Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]

Blomstrand C W (1868) Om Westanå mineralier, Öfversigt af Kongliga Vetenskaps-Akademiens Förhandlingar, 25, 197-212   [view file]

Prior G T, Spencer L J (1895) Augelite, Mineralogical Magazine, 11, 16-23   [view file]

Conway M (1901) Specimens from Aruro, The Bolivian Andes. A Record of Climbing & Exploration in the Cordillera Real in the Years 1898 and 1900, 1, Harper & Brothers Publishers New York & London 343, 345-346, 351   [view file]

Araki T, Finny J J, Zoltai T (1968) The crystal structure of augelite, American Mineralogist, 53, 1096-1103   [view file]

Frost R L, Weier M L (2004) Vibrational spectroscopy of natural augelite, Journal of Molecular Structure, 697, 207-211   [link]
