Name: Cerussite
RRUFF ID: R050023
Ideal Chemistry: Pb(CO3)
Locality: Mammoth - St Anthony mine, Tiger, Pinal County, Arizona, USA
Source: Eugene Schlepp
Owner: RRUFF
Description: Prismatic white single crystals
Status: The identification of this mineral has been confirmed by X-ray diffraction and chemical analysis
Mineral Group: [ Aragonite (18) ]
Quick search: [ All Cerussite samples (6) ]
CHEMISTRY
RRUFF ID: R050023.2
Sample Description: Microprobe Fragment
Measured Chemistry: Pb1.00CO3 ; CO2 not measured but estimated by difference and stoichiometry
Microprobe Data File: [ Download Excel File ]
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Sample is oriented, mounted onto a pin and polished
Pin ID: L00220
Orientation: Laser parallel to  b*  (0 1 0).     Fiducial mark perpendicular to laser is parallel to  c   [0 0 1].
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.
Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R050023
Wavelength:
Sample Description: Unoriented sample
Instrument settings: Thermo Almega XR 532nm @ 100% of 150mW
DOWNLOADS:

Raman Data (RAW) View Graph
RRUFF File

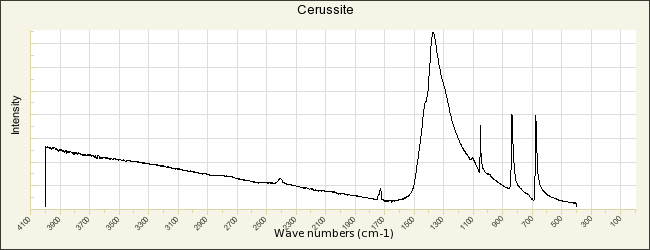

INFRARED SPECTRUM (Attenuated Total Reflectance)
RRUFF ID: R050023.1
Instrument settings: SensIR Durascope on a Nicolet Magna 860 FTIR
Resolution:
DOWNLOADS:

Infrared Data (Processed)
RRUFF File
X Min:    X Max:    X Sort:

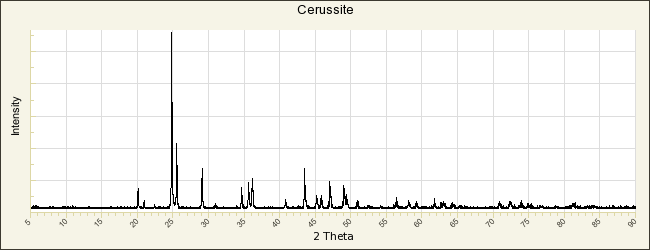

POWDER DIFFRACTION
RRUFF ID: R050023.1
Sample Description: Powder
Cell Refinement Output: a: 5.1819(2)Å    b: 8.4969(3)Å    c: 6.1439(2)Å
alpha: 90.°    beta: 90.°    gamma: 90.°   Volume: 270.51(1)Å3    Crystal System: orthorhombic
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

DOWNLOADS:

Cell Refinement Data
Cell Refinement Output Data
DIF File
X-ray Data (XY - Processed)
RRUFF File
X-ray Data (XY - RAW) View Graph
RRUFF File
X Min:    X Max:    X Sort:
REFERENCES for Cerussite

American Mineralogist Crystal Structure Database Record: [view record]

Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]

Crabb G (1823) Cerussa, in Universal Technological Dictionary, Volume 1 Baldwin, Cradock, and Joy London 305-305   [view file]

Beudant F S (1832) Céruse, in Traité Élémentaire de Minéralogie, 2nd Edition Paris 363-365   [view file]

Haidinger W (1845) Cerussit, in Handbuch der Bestimmenden Mineralogie Bei Braumüller and Seidel Wien 503-503   [view file]

Zachariasen W H (1928) Untersuchungen über die Kristallstruktur von Sesquioxyden und Verbindungen ABO3, Skrifter Utgitt av Det Norske Videnskaps-Akademi i Oslo, 1, 1-165   [view file]

Sahl K (1974) Verfeinerung de kristallstruktur von cerussite, PbCO3, Zeitschrift für Kristallographie, 139, 215-222   [view file]

Chevrier G, Giester G, Heger G, Jarosch D, Wildner M, Zemann J (1992) Neutron single-crystal refinement of cerussite, PbCO3, and comparison with other aragonite-type carbonates, Zeitschrift für Kristallographie, 199, 67-74   [view file]

Frost R L, Kloprogge J T, Williams P A (2003) Raman spectroscopy of lead sulphate-carbonate minerals - implications for hydrogen bonding, Neues Jahrbuch für Mineralogie, Monatshefte, 2003, 529-542

Antao S M, Hassan I (2009) The orthorhombic structure of CaCO3, SrCO3, PbCO3 and BaCO3: Linear structural trends, The Canadian Mineralogist, 47, 1245-1255   [view file]

Ye Y, Smyth J R, Boni P (2012) Crystal structure and thermal expansion of aragonite-group carbonates by single-crystal X-ray diffraction, American Mineralogist, 97, 707-712   [view file]

Kei M F, Markl G (2015) Weathering of galena: mineralogical processes, hydrogeochemical fluid path modeling, and estimation of the growth rate of pyromorphite, American Mineralogist, 100, 1584-1594

Markl G, Keim M F, Bayerl R (2019) Unusual mineral diversity in hydrothermal vein-type deposit: The Clara mine, SW Germany, as a type example, The Canadian Mineralogist, 57, 427-456
