Lavendulan R141212

Browse Search Results
<< Previous |  Back to Search Results |  Next >>
Record 3 of 3


Name: Lavendulan
RRUFF ID: R141212
Ideal Chemistry: NaCaCu5(AsO4)4Cl·5H2O
Locality: Alice May mine, Ravensthorpe, Western Australia, Australia
Source: James Shigley [view label]
Owner: RRUFF
Description: Sprays of blue bladed crystals
Status: The identification of this mineral has been confirmed only by single crystal X-ray diffraction.
Quick search: [ All Lavendulan samples (3) ]
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Unoriented Raman on the primary sample
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.
Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R141212
Wavelength:
Sample Description: Unoriented Raman on the primary sample
Instrument settings: Thermo Almega XR 532nm @ 25% of 150mW
DOWNLOADS:

Raman Data (Processed)
RRUFF File

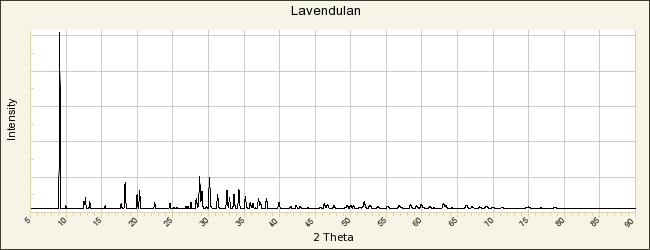

POWDER DIFFRACTION
RRUFF ID: R141212.9
Sample Description: Single crystal, powder profile is calculated
Cell Refinement Output: a: 9.991(5)Å    b: 19.430(8)Å    c: 10.011(6)Å
alpha: 90°    beta: 90.01(3)°    gamma: 90°   Volume: 1943.3(9)Å3    Crystal System: monoclinic
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

DOWNLOADS:

DIF File
X-ray Data (XY - RAW) View Graph
RRUFF File
X Min:    X Max:    X Sort:
REFERENCES for Lavendulan

American Mineralogist Crystal Structure Database Record: [view record]

Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]

Breithaupt J F A (1837) Bestimmung neuer mineralien. 3. Lavendulan, Journal für Praktische Chemie, 10, 505-506   [view file]

Fleischer M (1957) New mineral names, American Mineralogist, 42, 117-124   [view file]

Strunz H (1959) Tsumeb, seine Erze und Sekundärmineralien, insbesondere der neu aufgeschlossenen zweiten Oxydationszone, Fortschritte der Mineralogie, 37, 87-90

Frost R L, Weier M L, Williams P A, Leverett P, Kloprogge J T (2007) Raman spectroscopy of the sampleite group of minerals, Journal of Raman Spectroscopy, 38, 574-583

Giester G, Kolitsch U, Leverett P, Turner P, Williams P A (2007) The crystal structures of lavendulan, sampleite, and a new polymorph of sampleite, European Journal of Mineralogy, 19, 75-93
