Metatorbernite R070683

Browse Search Results
<< Previous |  Back to Search Results |  Next >>
Record 4 of 7


Name: Metatorbernite
RRUFF ID: R070683
Ideal Chemistry: Cu(UO2)2(PO4)2·8H2O
Locality: Chalk Mountain mine, Spruce Pine, Spruce Pine District, Mitchell County, North Carolina, USA
Source: Michael Scott S102638 [view label]
Owner: RRUFF
Description: Emerald-green tabular crystals associated with quartz and muscovite
Status: The identification of this mineral has been confirmed by single-crystal X-ray diffraction.
Quick search: [ All Metatorbernite samples (7) ]
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Unoriented sample
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.

Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R070683
Wavelength:
Sample Description: Unoriented sample
Instrument settings: Thermo Almega XR 532nm @ 100% of 150mW

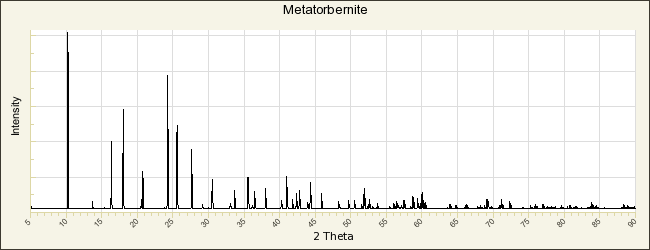

POWDER DIFFRACTION
RRUFF ID: R070683.9
Sample Description: Single crystal, powder profile is calculated
Cell Refinement Output: a: 6.955(3)Å    b: 6.955(3)Å    c: 17.257(8)Å
alpha: 90°    beta: 90°    gamma: 90°   Volume: 834.7(6)Å3    Crystal System: tetragonal
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

X Min:    X Max:    X Sort:
REFERENCES for Metatorbernite

American Mineralogist Crystal Structure Database Record: [view record]

Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]

Hallimond A F (1916) The crystallography and dehydration of torbernite, Mineralogical Magazine, 17, 326-339   [view file]

Wherry E T (1923) New minerals: new species, American Mineralogist, 8, 115-116   [view file]

Donnay G, Donnay J D H (1955) Contribution to the crystallography of uranium minerals, in Contribution to the Crystallography of Uranium Minerals Geological Survey for the United States Atomic Energy Commission, Technical Information Service Oak Ridge 1-42   [view file]

Ross M, Evans H T, Appleman D E (1964) Studies of the torbernite minerals (II): the crystal structure of meta-torbernite, American Mineralogist, 49, 1603-1621   [view file]

Diaz J M, Farach H A, Poole C P (1985) The magnetic properties of metatorbernite, The Canadian Mineralogist, 23, 643-646   [view file]

Stergiou A C, Rentzeperis P J (1993) Refinement of the crystal structure of metatorbernite, Zeitschrift für Kristallographie, 205, 1-7   [view file]

Calos N J, Kennard C H L (1996) Crystal structure of copper bis(uranyl phosphate) octahydrate (metatobernite), Cu(UO2PO4)2·8(H2O), Zeitschrift für Kristallographie, 211, 701-702

Shannon R D, Shannon R C, Medenbach O, Fischer R X (2002) Refractive index and dispersion of fluorides and oxides, Journal of Physical and Chemical Reference Data, 31, 931-970   [view file]

Locock A J, Burns P C (2003) Crystal structures and synthesis of the copper-dominant members of the autunite and meta-autunite groups: torbernite, zeunerite, metatorbernite and metazeunerite, The Canadian Mineralogist, 41, 489-502   [view file]

Suzuki Y, Sato T, Isobe H, Kogure T, Murakami T (2005) Dehydration processes in the meta-autunite group minerals meta-autunite, metasaléeite, and metatorbernite, American Mineralogist, 90, 1308-1314   [view file]

Plášil J, Sejkora J, Čejka J, Škoda R, Goliáš V (2009) Supergene mineralization of the Medvedín uranium deposit, Krkonoše Mountains, Czech Republic, Journal of Geosciences, 54, 15-56

Stubbs J E, Post J E, Elbert D C, Heaney P J, Veblen D R (2010) Uranyl phosphate sheet reconstruction during dehydration of metatorbernite [Cu(UO2)2(PO4)2·8H2O], American Mineralogist, 95, 1132-1140   [view file]
