Wakabayashilite R060747

Name: Wakabayashilite
RRUFF ID: R060747
Ideal Chemistry: (As,Sb)6As4S14
Locality: White Caps mine, Manhattan, Nye County, Nevada, USA
Source: Bob Jenkins [view label]
Owner: RRUFF
Description: Yellow fibrous aggregates
Status: The identification of this mineral has been confirmed by X-ray diffraction and chemical analysis
Quick search: [ All Wakabayashilite samples (2) ]
RRUFF ID: R060747.2
Sample Description: Microprobe Fragment
Measured Chemistry: (As4.49Sb1.51)Σ=6As4.00S14.00
Microprobe Data File: [ Download Excel File ]
Sample Description: Unoriented sample

  To download sample data,
  please select a specific
  orientation angle.

Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
RRUFF ID: R060747
Sample Description: Unoriented sample
Instrument settings: Thermo Almega XR 532nm @ 10% of 150mW

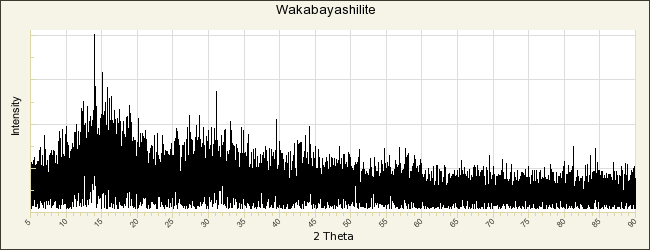

RRUFF ID: R060747.1
Sample Description: Powder, cell parameters are from single crystal
Cell Refinement Output: a: 25.31(1)Å    b: 14.613(6)Å    c: 6.515(1)Å
alpha: 90°    beta: 90°    gamma: 90°   Volume: 2410(1)Å3    Crystal System: orthorhombic
  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

X Min:    X Max:    X Sort:
REFERENCES for Wakabayashilite

American Mineralogist Crystal Structure Database Record: [view record]

Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]

Kato A, Sakurai K, Ohsumi K (1970) Wakabayashilite (As,Sb)11S18, in Introduction to Japanese Minerals Geological Survey of Japan, Volume 39 92-93   [view file]

Fleischer M (1972) New mineral names, American Mineralogist, 57, 1311-1317   [view file]

Scott J D, Nowacki W (1975) New data on wakabayashilite, The Canadian Mineralogist, 13, 418-419   [view file]

Bonazzi P, Lampronti G I, Bindi L, Zandari S (2005) Wakabayashilite, [(As,Sb)6S9][As4S5]: crystal structure, psuedosymmetry, twinning, and revised chemical formula, American Mineralogist, 90, 1108-1114   [view file]

Bonazzi P, Bindi L (2008) A crystallographic review of arsenic sulfides: Effects of chemical variations and changes induced by exposure to light, Zeitschrift für Kristallographie, 223, 132-147

Bindi L, Bonazzi P, Zoppi M, Spry P G (2014) Chemical variability in wakabayashilite: a real feature or an analytical artifact?, Mineralogical Magazine, 78, 693-702
