Sperrylite R070214

Name: Sperrylite
RRUFF ID: R070214
Ideal Chemistry: PtAs2
Locality: Vermilion Mine, Denison Township, Sudbury District, Ontario, Canada
Source: Michael Scott S102676 [view label]
Owner: RRUFF
Description: Loose aggregate of bright silver cubes, some with octahedral modifications
Status: The identification of this mineral has been confirmed only by single crystal X-ray diffraction.
Mineral Group: [ Pyrite (16) ]
Sample Description: Unoriented sample

  To download sample data,
  please select a specific
  orientation angle.

Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
RRUFF ID: R070214
Sample Description: Unoriented sample
Instrument settings: Thermo Almega XR 532nm @ 100% of 150mW

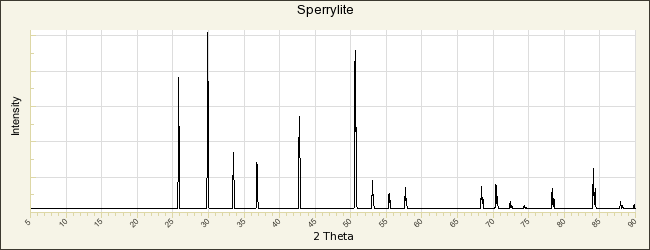

RRUFF ID: R070214.9
Sample Description: Single crystal, powder profile is calculated
Cell Refinement Output: a: 5.977(1)Å    b: 5.977(1)Å    c: 5.977(1)Å
alpha: 90°    beta: 90°    gamma: 90°   Volume: 213.51(2)Å3    Crystal System: cubic
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

X Min:    X Max:    X Sort:
REFERENCES for Sperrylite

American Mineralogist Crystal Structure Database Record: [view record]

Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]

Penfield S L (1889) On the crystalline form of sperrylite, American Journal of Science, 137, 71-73   [view file]

Wells H L (1889) Sperrylite, a new mineral, American Journal of Science, 137, 67-70   [view file]

Ramsdell L S (1925) The crystal structure of some metallic sulfides, American Mineralogist, 10, 281-304   [view file]

Bannister F A, Hey M H (1932) Determination of minerals in platinum concentrates from the Transvaal by X-ray methods, Mineralogical Magazine, 23, 188-208   [view file]

Murray J J, Heyding R D (1967) Decomposition pressures and enthalpies of formation of some transition metal diarsenides and diselenides, Canadian Journal of Chemistry, 45, 2675-2687

Stassen W N, Heyding R D (1968) Crystal structures of RuSe2, OsSe2, PtAs2, and α-NiAs2, Canadian Journal of Chemistry, 46, 2159-2163

Szymanski J T (1979) The crystal structure of platarsite, Pt(As,S)2, and a comparison with sperrylite, PtAs2, The Canadian Mineralogist, 17, 117-123   [view file]

Szymanski J T (1980) The crystal structure of platarsite, Pt(As,S)2, and a comparison with sperrylite, PtAs2: corrigendum, The Canadian Mineralogist, 18, 563-563   [view file]

Vuorelainen Y, Törnroos R (1986) Man-made Pt-PtAs2 spherules after sperrylite from alluvial deposits in Finnish Lapland, The Canadian Mineralogist, 24, 523-528   [view file]

Prichard H M, Tarkian M (1988) Platinum and palladium minerals from two PGE-rich localities in the Shetland ophiolite complex, The Canadian Mineralogist, 26, 979-990   [view file]

Stone W E, Fleet M E, Crocket J H, Kingston D M (1992) Platinum-group minerals in pyroxenite from the Boston Creek flow basaltic komatiite, Abitibi greenstone belt, Ontario, The Canadian Mineralogist, 30, 109-119   [view file]

McCreesh M J G, Yudovskaya M A, Kinnaird J A, Reinke C (2018) Platinum-group minerals of the F and T zones, Waterberg Project, far northern Bushveld Complex: implication for the formation of the PGE mineralization, Mineralogical Magazine, 82, 539–575
