Titantaramellite R060315

Browse Search Results
<< Previous |  Back to Search Results |  Next >>
Record 1 of 2


Name: Titantaramellite
RRUFF ID: R060315
Ideal Chemistry: Ba4(Ti,Fe3+,Mg)4(O,OH)2[B2Si8O27]Clx
Locality: Esquire #1 claim, Rush Creek, Fresno County, California, USA
Source: Michael Scott S100198 [view label]
Owner: RRUFF
Description: Brown colored subhedral blebs associated with quartz, diopside and sanbornite
Status: The identification of this mineral has been confirmed by single-crystal X-ray diffraction.
Quick search: [ All Titantaramellite samples (2) ]
CHEMISTRY
RRUFF ID: R060315.2
Sample Description: Microprobe Fragment
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Unoriented Raman on the primary sample
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.
Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R060315
Wavelength:
Sample Description: Unoriented Raman on the primary sample
Instrument settings: Thermo Almega XR 532nm @ 100% of 150mW
DOWNLOADS:

Raman Data (RAW) View Graph
RRUFF File

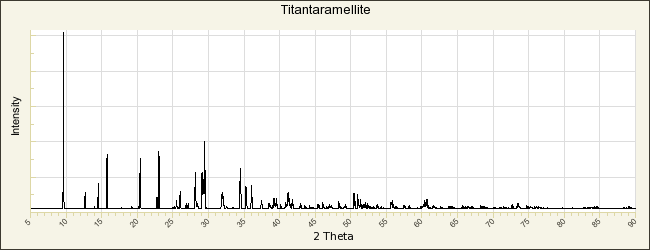

POWDER DIFFRACTION
RRUFF ID: R060315.9
Sample Description: Single crystal, powder profile is calculated
Cell Refinement Output: a: 12.195(3)Å    b: 13.964(3)Å    c: 7.110(1)Å
alpha: 90°    beta: 90°    gamma: 90°   Volume: 1210.8(1)Å3    Crystal System: orthorhombic
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

DOWNLOADS:

DIF File
X-ray Data (XY - RAW) View Graph
RRUFF File
X Min:    X Max:    X Sort:
REFERENCES for Titantaramellite

American Mineralogist Crystal Structure Database Record: [view record]

Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]

Mazzi F, Rossi G (1980) The crystal structure of taramellite, American Mineralogist, 65, 123-128   [view file]

Alfors J T, Pabst A (1984) Titanian taramellites in western North America, American Mineralogist, 69, 358-373   [view file]
