Name: Tsaregorodtsevite
RRUFF ID: R060373
Ideal Chemistry: N(CH3)4Si4(SiAl)O12
Locality: Mun-Hambo, north Urals, Hanty- Manskiisky, Autonomous District, Russia
Source: Michael Scott S100284 [view label]
Owner: RRUFF
Description: Colorless single crystals with octahedral and cubic forms
Status: The identification of this mineral is confirmed by single-crystal X-ray diffraction and chemical analysis.
Mineral Groups: [ sodalite (24) ] [ cancrinite-sodalite (37) ]
Quick search: [ All Tsaregorodtsevite samples (2) ]
CHEMISTRY
RRUFF ID: R060373.2
Sample Description: Microprobe Fragment
Measured Chemistry: N(CH3)4Si4.00(Si0.97Al1.03)Σ=2O12; trace amounts of Na; N and CH3 not measured but assumed by stoichiometry
Microprobe Data File: [ Download Excel File ]
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Unoriented Raman on the primary sample
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.
Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R060373
Wavelength:
Sample Description: Unoriented Raman on the primary sample
Instrument settings: Thermo Almega XR 532nm @ 100% of 150mW
DOWNLOADS:

Raman Data (RAW) View Graph
RRUFF File

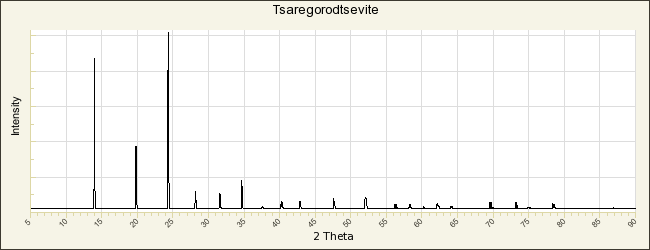

POWDER DIFFRACTION
RRUFF ID: R060373.9
Sample Description: Single crystal, powder profile is calculated
Cell Refinement Output: a: 8.9608(5)Å    b: 8.9595(5)Å    c: 8.9309(5)Å
alpha: 90°    beta: 90°    gamma: 90°   Volume: 717.0(1)Å3    Crystal System: orthorhombic
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

DOWNLOADS:

DIF File
X-ray Data (XY - RAW) View Graph
RRUFF File
X Min:    X Max:    X Sort:
REFERENCES for Tsaregorodtsevite

American Mineralogist Crystal Structure Database Record: [view record]

Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]

Leoni L, Mellini M, Merlino S, Orlandi P (1979) Cancrinite-like minerals: new data and crystal chemical considerations, Rendiconti della Società Italiana di Mineralogia e Petrologia, 35, 713-719   [view file]

Hassan I, Grundy H D (1984) The crystal structures of sodalite-group minerals, Acta Crystallographica, B40, 6-13

Sokolova E V, Rybakov V B, Pautov L A (1991) The crystal structure of a new natural tetramethylammonium aluminosilicate [N(CH3)4][Si2(Si0.5Al0.5)O6]2, Soviet Physics - Doklady, 36, 267-269   [view file]

Pautov L A, Karpenko V Y, Sokolova E V, Ignatenko K I (1993) Tsaregorodtsevite N(CH3)4[Si2(Si0.5Al0.5)O6]2 — a new mineral, Zapiski Vserossijskogo Mineralogicheskogo Obshchestva, 128, issue 1 128-135   [view file]

Sokolova E V, Rybakov V B, Pautov L A, Pushcharovskii D Y (1993) Structural changes in tsaregorodtsevite, Physics–Doklady, 38, 400-402   [view file]

Jambor J L, Roberts A C, Vanko D A (1994) New mineral names, American Mineralogist, 79, 1009-1014   [view file]

Sherriff B L, Sokolova E V, Cramer J, Kunath-Fandrei G, Jäger C, Pautov L A (1997) Changes in the crystal structure of tsaregorodtsevite [N(CH3)4][Si2(Si0.5Al0.5)O6]2 on heating, American Mineralogist, 82, 405-415   [view file]
