Name: Yttrium aluminum garnet
RRUFF ID: R110105
Ideal Chemistry: Y3Al2(AlO4)3
Locality: Synthetic
Source: Gemological Institute of America 10-12-2010-10 [view label]
Owner: RRUFF
Description: A cut, green (2.71ct) gemstone, grown by crystal pulling
Status: The identification of this mineral has been confirmed only by single crystal X-ray diffraction.
Mineral Group: [ garnet (97) ]
Quick search: [ All Yttrium aluminum garnet samples (3) ]
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Unoriented Raman on the primary sample; 780 nm spectrum is overwhelmed by fluorescence.
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.
Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R110105
Wavelength:
Sample Description: Unoriented Raman on the primary sample; 780 nm spectrum is overwhelmed by fluorescence.
Instrument settings: Thermo Almega XR 532nm @ 1% of 150mW
DOWNLOADS:

Raman Data (Processed)
RRUFF File

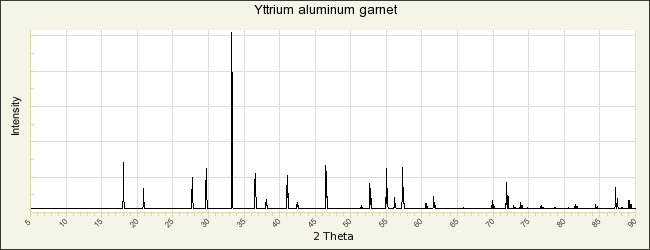

POWDER DIFFRACTION
RRUFF ID: R110105.9
Sample Description: Single crystal, powder profile is calculated
Cell Refinement Output: a: 12.0300(9)Å    b: 12.0300(9)Å    c: 12.0300(9)Å
alpha: 90°    beta: 90°    gamma: 90°   Volume: 1741.0(1)Å3    Crystal System: cubic
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

DOWNLOADS:

DIF File
X-ray Data (XY - RAW) View Graph
RRUFF File
X Min:    X Max:    X Sort:
REFERENCES for Yttrium aluminum garnet

Nakatsuka A, Yoshiasa A, Yamanaka T (1999) Cation distribution and crystal chemistry of Y3Al5-xGaxO12 (0 < x < 5) garnet solid solutions, Acta Crystallographica, B55, 266-272
