Name: Zincolibethenite
RRUFF ID: R060763
Ideal Chemistry: CuZn(PO4)(OH)
Locality: Kabwe mine, Kabwe, Zambia
Source: Michael Scott S101364 [view label]
Owner: RRUFF
Description: Pale greenish-blue botryoidal groups of radiating crystals, associated with colorless tarbuttite
Status: The identification of this mineral has been confirmed only by single crystal X-ray diffraction.
Mineral Group: [ Andalusite (17) ]
Quick search: [ All Zincolibethenite samples (2) ]
CHEMISTRY
RRUFF ID: R060763.2
Sample Description: Microprobe Fragment
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Unoriented Raman on the primary sample
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.

Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:

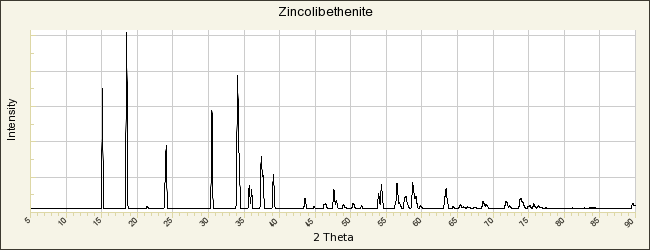

POWDER DIFFRACTION
RRUFF ID: R060763.9
Sample Description: Single crystal, powder profile is calculated
Cell Refinement Output: a: 8.335(5)Å    b: 8.249(8)Å    c: 5.880(6)Å
alpha: 90°    beta: 90°    gamma: 90°   Volume: 404(1)Å3    Crystal System: orthorhombic
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

X Min:    X Max:    X Sort:
REFERENCES for Zincolibethenite

American Mineralogist Crystal Structure Database Record: [view record]

Braithwaite R S W, Pritchard R G, Paar W H, Pattrick R A D (2005) A new mineral, zincolibethenite, CuZnPO4OH, a stoichiometric species of specific site occupancy, Mineralogical Magazine, 69, 145-153   [view file]

Piilonen P C, Locock A, Grew E S (2005) New mineral names, American Mineralogist, 90, 1945-1952   [view file]

Williams P A, Leverett P, Birch W D, Hibbs D E, Kilitsch U, Mihajlovic T (2006) Zinc-rich zincolibethenite from Broken Hill, New South Wales, Australian Journal of Mineralogy, 12, 3-7   [view file]
