Adamite R040130

Name: Adamite
RRUFF ID: R040130
Ideal Chemistry: Zn₂(AsO₄)(OH)
Locality: Mina Ojuela, Mapimi, Durango, Mexico
Source: Bob Downs
Owner: RRUFF
Description: Pale yellow spherical aggregate of bladed crystals
Status: The identification of this mineral has been confirmed by X-ray diffraction and chemical analysis

Mineral Group: [ Andalusite (17) ]

Quick search: [ All Adamite samples (3) ]

CHEMISTRY

RRUFF ID:	R040130.2
Sample Description:	Microprobe Fragment
Measured Chemistry:	Zn_1.97(As_1.01O₄)(OH)

RAMAN SPECTRUM

RRUFF ID:

Sample Description:

Sample is oriented, mounted onto a pin and polished

Pin ID:

S00040

Orientation:

Laser parallel to c* (0 0 1). Fiducial mark perpendicular to laser is parallel to a [1 0 0].

DOWNLOADS:

To download sample data,
please select a specific
orientation angle.

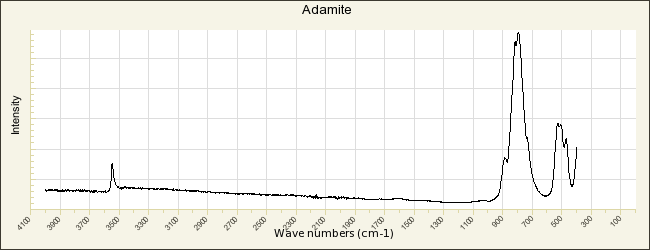

BROAD SCAN WITH SPECTRAL ARTIFACTS

RRUFF ID:

R040130

Wavelength:

Sample Description:

Unoriented sample

Instrument settings:

Thermo Almega XR 532nm @ 100% of 150mW

DOWNLOADS:

	Raman Data (Processed)
	RRUFF File
	Raman Data (RAW)
	RRUFF File

INFRARED SPECTRUM (Attenuated Total Reflectance)

RRUFF ID:

R040130.1

Sample Description:

Powder

Instrument settings:

SensIR Durascope on a Nicolet Magna 860 FTIR

Resolution:

DOWNLOADS:

	Infrared Data (RAW)
	RRUFF File

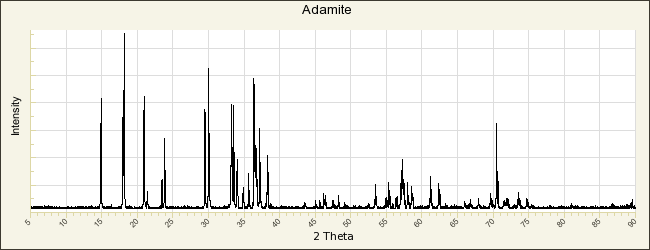

POWDER DIFFRACTION

RRUFF ID:

R040130.1

Sample Description:

Powder

Cell Refinement Output:

a: 8.3160(1)Å b: 8.5307(3)Å c: 6.0598(2)Å
alpha: 90.° beta: 90.° gamma: 90.° Volume: 429.90(1)Å³ Crystal System: orthorhombic

File Type Information

Calculated diffraction file.

File Type Information

Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

File Type Information

Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

DOWNLOADS:

	Cell Refinement Data
	Cell Refinement Output Data
	DIF File
	X-ray Data (XY - Processed)
	RRUFF File
	X-ray Data (XY - RAW)
	RRUFF File

REFERENCES for Adamite
American Mineralogist Crystal Structure Database Record: [view record]
Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]
Friedel C, Daubrée G A (1866) Sur l‘adamine, nouvelle espèce minérale, Comptes Rendus Hebdomadaires des Séances de l'Académie des Sciences, 62, 692-695 [view file]
Richmond W E (1940) Crystal chemistry of the phosphates, arsenates and vanadates of the type A₂XO₄(Z), American Mineralogist, 25, 441-478 [view file]
Mrose M E, Mayers D E, Wise F A (1948) Adamite from the Ojuela Mine, Mapimi, Mexico, American Mineralogist, 33, 449-457
Sumin de Portilla V I (1974) Infrared spectroscopic investigation of the structure of some natural arsenates and the nature of H-bonds in their structures, The Canadian Mineralogist, 12, 262-268 [view file]
Hawthorne F C (1976) A refinement of the crystal structure of adamite, The Canadian Mineralogist, 14, 143-148 [view file]
Hill R J (1976) The crystal structure and infrared properties of adamite, American Mineralogist, 61, 979-986 [view file]
Kato T, Miura Y (1977) The crystal structures of adamite and paradamite, Mineralogical Journal, 8, 320-328 [view file]
Toman K (1978) Ordering in olivenite-adamite solid solutions, Acta Crystallographica, B34, 715-721
Braithwaite R S W (1983) Infrared spectroscopic analysis of the olivenite-adamite series, and of phosphate substitution in olivenite, Mineralogical Magazine, 47, 51-57 [view file]
Chisholm J E (1985) Cation segregation and the O-H stretching vibration of the olivenite-adamite series, Physics and Chemistry of Minerals, 12, 185-190
Braithwaite R S W, Green D I, Tindle A G (2009) The distribution and composition of adamite and zincolivenite in Britian and Ireland, Journal of the Russell Society, 12, 3-9
Jinnouchi S, Yoshiasa A, Sugiyama K, Shimura R, Arima H, Momma H, Miyawaki R (2016) Crystal structure refinements of legrandite, adamite, and paradamite: The complex structure and characteristic hydrogen bonding network of legrandite, Journal of Mineralogical and Petrological Sciences, 111, 35-43
Zema M, Tarantino S C, Boiocchi M, Callegari A M (2016) Crystal structure of adamite at high temperature, Mineralogical Magazine, 80, 901-914
