Berzelianite R110159 - RRUFF Database: Raman, X-ray, Infrared, and Chemistry

Berzelianite R110159

Name: Berzelianite
RRUFF ID: R110159
Ideal Chemistry: Cu_2-xSe (x ≈ 0.12)
Locality: Facebaja, Romania
Source: Mark N Feinglos [view label]
Owner: RRUFF
Description: Black metallic euhedral grains, associated with pale-yellow sulfur crystals.
Status: The identification of this mineral has been confirmed only by single crystal X-ray diffraction.

Quick search: [ All Berzelianite samples (2) ]

RAMAN SPECTRUM

RRUFF ID:

Sample Description:

Unoriented Raman on the primary sample

DOWNLOADS:

To download sample data,
please select a specific
orientation angle.

BROAD SCAN WITH SPECTRAL ARTIFACTS

RRUFF ID:

R110159

Wavelength:

Sample Description:

Unoriented Raman on the primary sample

Instrument settings:

Thermo Almega XR 532nm @ 100% of 150mW

DOWNLOADS:

	Raman Data (Processed)
	RRUFF File
	Raman Data (RAW)
	RRUFF File

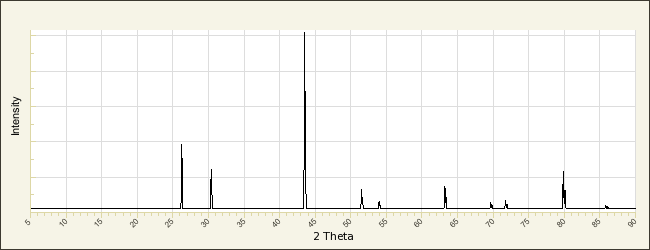

POWDER DIFFRACTION

RRUFF ID:

R110159.9

Sample Description:

Single crystal, powder profile is calculated

Cell Refinement Output:

a: 5.879(2)Å b: 5.879(2)Å c: 5.879(2)Å
alpha: 90° beta: 90° gamma: 90° Volume: 203.22(1)Å³ Crystal System: cubic

File Type Information

Calculated diffraction file.

File Type Information

Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

DOWNLOADS:

	DIF File
	X-ray Data (XY - RAW)
	RRUFF File

REFERENCES for Berzelianite
American Mineralogist Crystal Structure Database Record: [view record]
Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]
Beudant F S (1832) Berzeline, cuivre sélenié, in Traité Élémentaire de Minéralogie, 2nd Edition Paris 534-534 [view file]
Borchert W (1945) Gitterumwandlungen im System Cu_2-xSe, Zeitschrift für Kristallographie, 106, 5-24 [view file]
Earley J W (1950) Description and synthesis of the selenide minerals, American Mineralogist, 35, 337-364 [view file]
Harris D C, Cabri L J, Murray E J (1970) An occurrence of a sulphur-bearing berzelianite, The Canadian Mineralogist, 10, 737-740 [view file]
Heyding R D, Murray R M (1976) Crystal structures of Cu_1.8Se, Cu₃Se₂, α- and γCuSe, CuSe₂, and CuSe₂II, Canadian Journal of Chemistry, 54, 841-848
Yamamoto K, Kashida S (1991) X-ray study of the average structures of Cu₂Se and Cu_1.8S in the room temperature and the high temperature phases, Journal of Solid State Chemistry, 93, 202-211
