Name: Billietite
RRUFF ID: R070624
Ideal Chemistry: Ba(UO2)6O4(OH)6·8H2O
Locality: Eureka mine, Castell Estaó, La Plana de Mont-ros, La Torre de Capdella, Lleida, Catalonia, Spain
Source: Joan Abella i Creus
Owner: RRUFF
Description: Yellow platy crystals associated with green malachite and orange becquerelite
Status: The identification of this mineral has been confirmed by single-crystal X-ray diffraction.
Quick search: [ All Billietite samples (2) ]
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Unoriented sample
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.
Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R070624
Wavelength:
Sample Description: Unoriented sample
Instrument settings: Thermo Almega XR 532nm @ 10% of 150mW
DOWNLOADS:

Raman Data (Processed)
RRUFF File
Raman Data (RAW) View Graph
RRUFF File

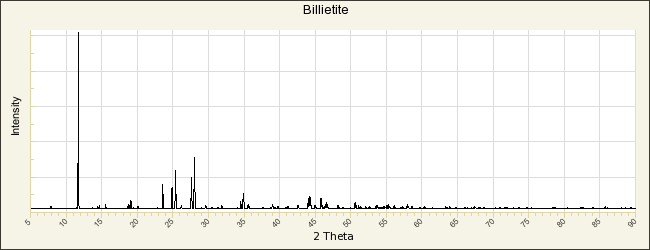

POWDER DIFFRACTION
RRUFF ID: R070624.9
Sample Description: Single crystal, powder profile is calculated
Cell Refinement Output: a: 12.084(5)Å    b: 30.187(9)Å    c: 7.149(3)Å
alpha: 90°    beta: 90°    gamma: 90°   Volume: 2607.9(8)Å3    Crystal System: orthorhombic
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

DOWNLOADS:

DIF File
X-ray Data (XY - RAW) View Graph
RRUFF File
X Min:    X Max:    X Sort:
REFERENCES for Billietite

American Mineralogist Crystal Structure Database Record: [view record]

Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]

Vaes J F (1947) Six nouveaux minéraux d'urane provenant de Shinkolobwe (Katanga), Annales de la Société Géologique de Belgique, 70, B212-B225   [view file]

Fleischer M (1948) New mineral names, American Mineralogist, 33, 384-386   [view file]

Fleischer M (1949) New mineral names, American Mineralogist, 34, 339-339   [view file]

Frondel J W, Cuttutta F (1953) Studies of uranium minerals (XII): The status of billietite and becquerelite, American Mineralogist, 30, 1019-1024   [view file]

Christ C L, Clark J R (1960) Crystal chemical studies of uranyl oxide hydrates, American Mineralogist, 45, 1026-1061   [view file]

Pagoaga M K, Appleman D E, Stewart J M (1987) Crystal structures and crystal chemistry of the uranyl oxide hydrates becquerelite, billietite, and protasite, American Mineralogist, 72, 1230-1238   [view file]

Finch R L, Burns P C, Hawthorne F C, Ewing R C (2006) Refinement of the crystal structure of billietite, Ba [(UO2)6O4(OH)6] (H2O)8, The Canadian Mineralogist, 44, 1197-1205   [view file]

Frost R L, Čejka J, Weier M L (2007) Raman spectroscopic study of the uranyl oxyhydroxide hydrates: becquerelite, billietite, curite, schoepite and vandendriesscheite, Journal of Raman Spectroscopy, 38, 460-466

Piilonen P C, Locock A J, Rowe R, Ercit T S (2007) New mineral names, American Mineralogist, 92, 703-707   [view file]
