Name: Palenzonaite
RRUFF ID: R060455
Ideal Chemistry: (NaCa2)Mn2+2(VO4)3
Locality: Molinello mine, Val Graveglia, Genova Province, Liguria, Italy
Source: Michael Scott S100207 [view label]
Owner: RRUFF
Description: Dark-red massive crystals associated with calcite, quartz, and muscovite
Status: The identification of this mineral has been confirmed only by single crystal X-ray diffraction.
Mineral Group: [ garnet (97) ]
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Unoriented Raman on the primary sample
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.
Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R060455
Wavelength:
Sample Description: Unoriented Raman on the primary sample
Instrument settings: Thermo Almega XR 532nm @ 100% of 150mW
DOWNLOADS:

Raman Data (Processed)
RRUFF File
Raman Data (RAW) View Graph
RRUFF File

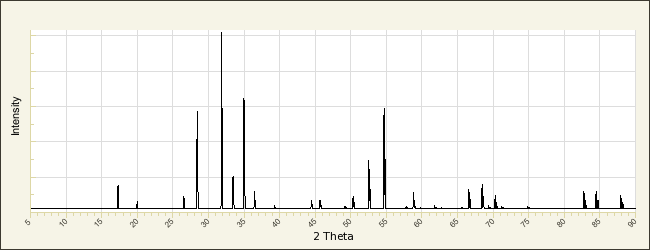

POWDER DIFFRACTION
RRUFF ID: R060455.9
Sample Description: Single crystal, powder profile is calculated
Cell Refinement Output: a: 12.552(2)Å    b: 12.552(2)Å    c: 12.552(2)Å
alpha: 90°    beta: 90°    gamma: 90°   Volume: 1977.7(2)Å3    Crystal System: cubic
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

DOWNLOADS:

DIF File
X-ray Data (XY - RAW) View Graph
RRUFF File
X Min:    X Max:    X Sort:
REFERENCES for Palenzonaite

American Mineralogist Crystal Structure Database Record: [view record]

Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]

Basso R (1987) The crystal structure of palenzonaite, a new vanadate garnet from Val Graveglia (Northern Apennines, Italy), Neues Jahrbuch für Mineralogie, Monatshefte, 1987, 136-144

Jambor J L, Bladh K W, Ercit T S, Grice J D, Grew E S (1988) New mineral names, American Mineralogist, 73, 927-935   [view file]

Nagashima M, Armbruster T (2012) Palenzonaite, berzeliite, and manganberzeliite:(As5+,V5+,Si4+)O4 tetrahedra in garnet structures, Mineralogical Magazine, 76, 1081-1097   [view file]

Grew E S, Locock A J, Mills S J, Galuskina I O, Galuskin E V, Hålenius U (2013) Nomenclature of the garnet supergroup, American Mineralogist, 98, 785-811   [view file]
