Name: Gmelinite-Na
RRUFF ID: R060168
Ideal Chemistry: Na4(Si8Al4)O24·11H2O
Locality: Five Islands, Nova Scotia, Canada
Source: Guy Ouellet
Owner: RRUFF
Description: Salmon-red interpenetrating prismatic rhombohedral crystals
Status: The identification of this mineral has been confirmed by X-ray diffraction and chemical analysis
Mineral Group: [ Gmelinite (6) ]
Quick search: [ All Gmelinite-Na samples (4) ]
CHEMISTRY
RRUFF ID: R060168.2
Sample Description: Microprobe fragment
Measured Chemistry: (Na3.90Ca0.10)(Si7.90Al4.10)O24ยท8.98H2O
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Sample is oriented and mounted on a pin.
Pin ID: M01916
Orientation: Laser parallel to  a*  (1 0 0).     Fiducial mark perpendicular to laser is parallel to  c   [0 0 1].
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.

Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R060168
Wavelength:
Sample Description: Unoriented Raman on the primary sample
Instrument settings: Thermo Almega XR 532nm @ 100% of 150mW

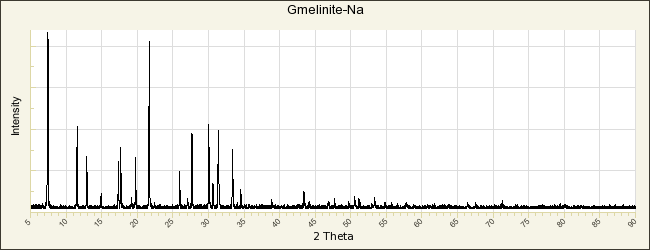

POWDER DIFFRACTION
RRUFF ID: R060168.1
Sample Description: Powder
Cell Refinement Output: a: 13.7401(5)Å    b: 13.7401(5)Å    c: 10.0488(5)Å
alpha: 90°    beta: 90°    gamma: 120°   Volume: 1643.0(0)Å3    Crystal System: hexagonal
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

X Min:    X Max:    X Sort:
REFERENCES for Gmelinite-Na

American Mineralogist Crystal Structure Database Record: [view record]

Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]

Brewster D (1825) Description of gmelinite, a new mineral species, The Edinburgh Journal of Science, 2, 262-267   [view file]

Barrer R M (1944) Sorption by gmelinite and mordenite, Transactions of the Faraday Society, 44, 555-564

Passaglia E, Pongiluppi D, Vezzalini G (1978) The crystal chemistry of gmelinites, Neues Jahrbuch für Mineralogie, Monatshefte, 1978, 310-324

Fischer K (1982) Untersuchung der kristallstruktur von gmelinit, Neues Jahrbuch für Mineralogie, Monatshefte, 1982, 145-155

Sacerdoti M, Passaglia E, Carnevali R (1995) Structural refinements of Na-, K-, and Ca-exchanged gmelinites, Zeolites, 15, 276-281

Coombs D S, Alberti A, Armbruster T, Artioli G, Colella C, Galli E, Grice J D, Liebau F, Mandarino J A, Minato H, Nickel E H, Passaglia E, Peacor D R, Quartieri S, Rinaldi R, Ross M, Sheppard R A, Tillmanns E, Vezzalini G, (1997) Recommended nomenclature for zeolite minerals: report of the Subcommittee on Zeolites of the International Mineralogical Association, Commission on New Minerals and Mineral Names, The Canadian Mineralogist, 35, 1571-1606   [view file]

Jambor J L, Grew E S, Roberts A C (1998) New mineral names, American Mineralogist, 83, 1347-1352   [view file]
