Hydromagnesite R060011

Browse Search Results
<< Previous |  Back to Search Results |  Next >>
Record 1 of 2


Name: Hydromagnesite
RRUFF ID: R060011
Ideal Chemistry: Mg5(CO3)4(OH)2·4H2O
Locality: Paradise Range, Nye County, Nevada, USA
Source: University of Arizona Mineral Museum 5218 [view label]
Owner: RRUFF
Description: Colorless bladed crystals
Status: The identification of this mineral has been confirmed by X-ray diffraction and chemical analysis
Quick search: [ All Hydromagnesite samples (2) ]
CHEMISTRY
RRUFF ID: R060011.2
Sample Description: Microprobe fragment
Measured Chemistry: Mg5.00(CO3)4(OH)2ยท4H2O
Microprobe Data File: [ Download Excel File ]
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Unoriented sample
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.
Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R060011
Wavelength:
Sample Description: Unoriented sample
Instrument settings: Thermo Almega XR 532nm @ 100% of 150mW
DOWNLOADS:

Raman Data (RAW) View Graph
RRUFF File
INFRARED SPECTRUM (Attenuated Total Reflectance)
RRUFF ID: R060011.1
Sample Description: Powder
Instrument settings: SensIR Durascope on a Nicolet Magna 860 FTIR
Resolution:
DOWNLOADS:

Infrared Data (Processed)
RRUFF File
X Min:    X Max:    X Sort:

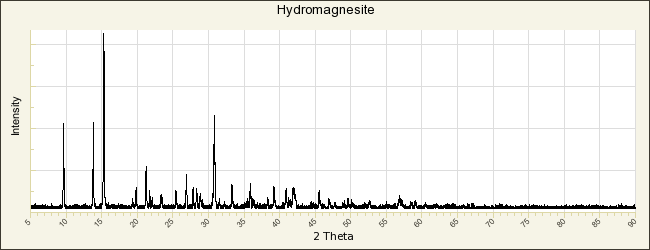

POWDER DIFFRACTION
RRUFF ID: R060011.1
Sample Description: Powder
Cell Refinement Output: a: 10.081(6)Å    b: 8.9562(4)Å    c: 8.376(2)Å
alpha: 90°    beta: 114.28(8)°    gamma: 90°   Volume: 689.4(0)Å3    Crystal System: monoclinic
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

DOWNLOADS:

Cell Refinement Data
Cell Refinement Output Data
DIF File
X-ray Data (XY - Processed)
RRUFF File
X-ray Data (XY - RAW) View Graph
RRUFF File
X Min:    X Max:    X Sort:
REFERENCES for Hydromagnesite

American Mineralogist Crystal Structure Database Record: [view record]

Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]

Wachtmeister T (1828) Analys af ett pulverformigt mineral från Norra Amerika, Kongliga Svenska Vetenskaps-Akademiens Handlingar, 1828, 17-19   [view file]

von Kobell F (1835) Ueber den hydromagnesit von Kumi auf Negroponte, Journal für Praktische Chemie, 4, 80-81   [view file]

Rogers A F (1923) Crystallography of hydromagnesite, American Journal of Science, 6, 37-47   [view file]

Akao M, Iwai S (1977) The hydrogen bonding of hydromagnesite, Acta Crystallographica, B33, 1273-1275
