Pseudomalachite R040175

Browse Search Results
<< Previous |  Back to Search Results |  Next >>
Record 1 of 3

Name: Pseudomalachite
RRUFF ID: R040175
Ideal Chemistry: Cu5(PO4)2(OH)4
Locality: West Bogan mine, Tottenham, Australia
Source: University of Arizona Mineral Museum 12558 [view label]
Owner: RRUFF
Description: Green massive in a botryoidal shape
Status: The identification of this mineral has been confirmed by X-ray diffraction and chemical analysis
Quick search: [ All Pseudomalachite samples (3) ]
CHEMISTRY
RRUFF ID: R040175.2
Sample Description: Microprobe Fragment
Measured Chemistry: Cu5.00(P1.00O4)2(OH.98F.02)4
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Unoriented sample
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.
Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R040175
Wavelength:
Sample Description: Unoriented sample
Instrument settings: Thermo Almega XR 532nm @ 100% of 150mW
DOWNLOADS:

Raman Data (RAW) View Graph
RRUFF File

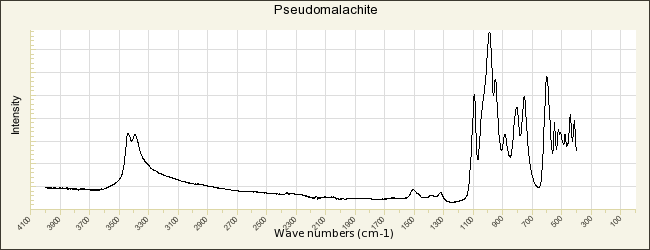

INFRARED SPECTRUM (Attenuated Total Reflectance)
RRUFF ID: R040175.1
Sample Description: Powder
Instrument settings: SensIR Durascope on a Nicolet Magna 860 FTIR
Resolution:
DOWNLOADS:

Infrared Data (RAW) View Graph
RRUFF File
X Min:    X Max:    X Sort:

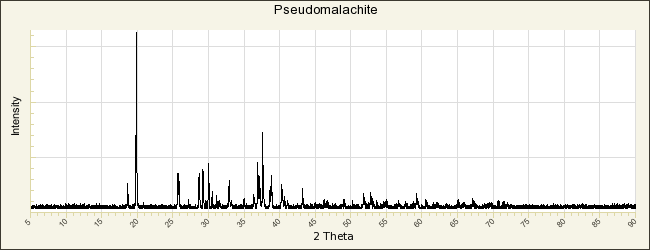

POWDER DIFFRACTION
RRUFF ID: R040175.1
Sample Description: Powder
Cell Refinement Output: a: 4.4780(2)Å    b: 5.7508(1)Å    c: 17.0435(7)Å
alpha: 90.°    beta: 91.061(2)°    gamma: 90.°   Volume: 438.84(1)Å3    Crystal System: monoclinic
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

DOWNLOADS:

Cell Refinement Data
Cell Refinement Output Data
DIF File
X-ray Data (XY - Processed)
RRUFF File
X-ray Data (XY - RAW) View Graph
RRUFF File
X Min:    X Max:    X Sort:
REFERENCES for Pseudomalachite

American Mineralogist Crystal Structure Database Record: [view record]

Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]

Hausmann J F L (1813) Pseudomalachit, in Handbuch der Mineralogie, Volume 3 Göttingen 1036-1041   [view file]

Berry L G (1950) On pseudomalachite and cornetite, American Mineralogist, 35, 365-385   [view file]

Anderson J B, Shoemaker G L, Kostiner E, Ruszala F A (1977) The crystal structure of synthetic Cu5(PO4)2(OH)4, a polymorph of pseudomalachite, American Mineralogist, 62, 115-121   [view file]

Shoemaker G L, Anderson J B, Kostiner E (1977) Refinement of the crystal structure of pseudomalachite, American Mineralogist, 62, 1042-1048   [view file]

Jambor J L, Bladh K W, Ercit T S, Grice J D, Grew E S (1988) New mineral names, American Mineralogist, 73, 927-935   [view file]

Frost R L, Kloprogge T, Williams P A, Martens W, Johnson T E, Leverett P (2002) Vibrational spectroscopy of the basic copper phosphate minerals: pseudomalachite, ludjibaite and reichenbachite, Spectrochimica Acta Part A-Molecular and Biomolecular Spectroscopy, 58, 2861-2868   [link]

Frost R L, Williams P A, Martens W, Kloprogge J T, Leverett P (2002) Raman spectroscopy of the basic copper phosphate minerals cornetite, libethenite, pseudomalachite, reichenbachite and ludjibaite, Journal of Raman Spectroscopy, 33, 260-263   [link]

Martens W, Frost R L (2003) An infrared spectroscopic study of the basic copper phosphate minerals: cornetite, libethenite, and pseudomalachite, American Mineralogist, 88, 37-46   [view file]

Martens W N, Frost R L, Williams P A (2003) The basic copper phosphate minerals pseudomalachite, ludjibaite and reichenbachite: an infrared emission and Raman spectroscopic study, Neues Jahrbuch für Mineralogie, Monatshefte, 2003, 337-362

Plášil J, Sejkora J, Čejka J, Škoda R, Goliáš V (2009) Supergene mineralization of the Medvedín uranium deposit, Krkonoše Mountains, Czech Republic, Journal of Geosciences, 54, 15-56

Majzlan J, Zittlau A H, Grevel K, Schliesser J, Woodfield B F, Dachs E, Števko M, Chovan M, Plášil J, Sejkora J, Milovská S (2015) Thermodynamic properties and phase equilibria of the secondary copper minerals libethenite, olivenite, pseudomalachite, kröhnkite, cyanochroite, and devilline, The Canadian Mineralogist, 53, 937-960

Ciesielczuk J, Janeczek J, Dulski M, Krzykawski T (2016) Pseudomalachite-cornwallite and kipushite-philipsburgite solid solutions: chemical composition and Raman spectroscopy, European Journal of Mineralogy, 28, 555-569

Makovicky E (2019) The pseudomalachite-ludjibaite-reichenbachite conundrum: OD description, The Canadian Mineralogist, 57, 571-581
