Pumpellyite R120172 - RRUFF Database: Raman, X-ray, Infrared, and Chemistry

Pumpellyite-(Mg) R120172

Name: Pumpellyite-(Mg)
RRUFF ID: R120172
Ideal Chemistry: Ca₂MgAl₂(Si₂O₇)(SiO₄)(OH)₂·H₂O
Locality: Archidona, Malaga Province, Spain
Source: Bob Jenkins [view label]
Owner: RRUFF
Description: Aggregates of dark-green acicular crystals, associated with light green epidote
Status: The identification of this mineral has been confirmed only by single crystal X-ray diffraction.

Mineral Group: [ Pumpellyite (6) ]

Quick search: [ All Pumpellyite-(Mg) samples (2) ]

RAMAN SPECTRUM

RRUFF ID:

Sample Description:

Unoriented Raman on the primary sample

DOWNLOADS:

To download sample data,
please select a specific
orientation angle.

BROAD SCAN WITH SPECTRAL ARTIFACTS

RRUFF ID:

R120172

Wavelength:

Sample Description:

Unoriented Raman on the primary sample

Instrument settings:

Thermo Almega XR 532nm @ 100% of 150mW

DOWNLOADS:

	Raman Data (Processed)
	RRUFF File

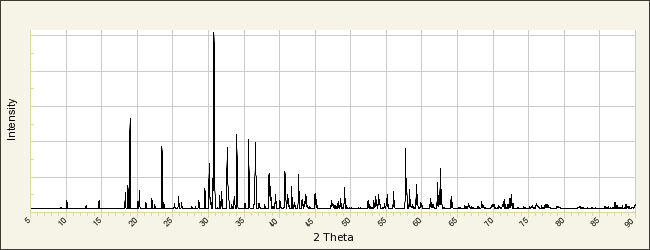

POWDER DIFFRACTION

RRUFF ID:

R120172.9

Sample Description:

Single crystal, powder profile is calculated

Cell Refinement Output:

a: 19.164(6)Å b: 5.933(1)Å c: 8.827(2)Å
alpha: 90° beta: 97.56(2)° gamma: 90° Volume: 994.9(2)Å³ Crystal System: monoclinic

File Type Information

Calculated diffraction file.

File Type Information

Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

DOWNLOADS:

	DIF File
	X-ray Data (XY - RAW)
	RRUFF File

REFERENCES for Pumpellyite-(Mg)
American Mineralogist Crystal Structure Database Record: [view record]
Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]
Palache C, Vassar H E (1925) Some minerals of the Keweenawan copper deposits: pumpellyite, a new mineral; sericite; saponite, American Mineralogist, 10, 412-418 [view file]
Foshag W F (1926) New mineral names, American Mineralogist, 11, 216-220 [view file]
Claringbull G F (1953) Mineralogical Society (London), American Mineralogist, 38, 734-737 [view file]
Coombs D S (1953) The pumpellyite mineral series, Mineralogical Magazine, 30, 113-135 [view file]
Galli E, Alberti A (1969) On the crystal structure of pumpellyite, Acta Crystallographica, B25, 2276-2281
Passaglia E, Gottardi G (1973) Crystal chemistry and nomenclature of pumpellyites and julgoldites, The Canadian Mineralogist, 12, 219-223 [view file]
Franks S G (1974) Prehnite-pumpellyite facies metamorphism of the New Bay Formation, Exploits zone, Newfoundland, The Canadian Mineralogist, 12, 456-462 [view file]
Papezik V S (1974) Prehnite-pumpellyite facies metamorphism of late Precambrian rock of the Avalon Peninsula, Newfoundland, The Canadian Mineralogist, 12, 463-468 [view file]
Fleischer M, Pabst A, Mandarino J A, Chao G Y, Cabri L J (1976) New mineral names, American Mineralogist, 61, 174-186 [view file]
Trzcienski W E, Birkett T C (1982) Compositional variations of pumpellyite along the western margin of the Quebec Appalachians, The Canadian Mineralogist, 20, 203-209 [view file]
Dunn P J, Fleischer M, Chao G Y, Cabri L J, Mandarino J A (1983) New mineral names, American Mineralogist, 68, 1248-1252 [view file]
Jambor J L (1992) New mineral names, American Mineralogist, 77, 1305-1309 [view file]
Nagashima M, Akasaka M, Ikeda K, Kyono A, Makino K (2010) X-ray single-crystal and optical spectroscopic study of chromian pumpellyite from Sarany, Urals, Russia, Journal of Mineralogical and Petrological Sciences, 105, 187-193
Nagashima M (2011) Pumpellyite-, sursassite-, and epidote-type structures: common principles-individual features, Journal of Mineralogical and Petrological Sciences, 106, 211-222
Lykova I S, Varlamov D A, Chukanov N V, Pekov I V, Zubakova N V (2018) Crystal chemistry of shuiskite and chromian pumpellyite-(Mg), European Journal of Mineralogy, 30, 1133-1139 [view file]
