Name: Renierite
RRUFF ID: R050433
Ideal Chemistry: (Cu1+,Zn)11Fe4(Ge4+,As5+)2S16
Locality: Tsumeb mine, Tsumeb, Otavi District, Oshikoto, Namibia
Source: University of Arizona Mineral Museum 8325 [view label]
Owner: RRUFF
Description: Bronze metallic massive
Status: The identification of this mineral has been confirmed by X-ray diffraction and chemical analysis
Mineral Groups: [ Sphalerite (35) ] [ Germanite (4) ]
Quick search: [ All Renierite samples (2) ]
CHEMISTRY
RRUFF ID: R050433.2
Sample Description: Microprobe Fragment
Measured Chemistry: (Cu10.51Zn0.49)Σ=11Fe4.00(Ge1.67As0.33)Σ=2S16
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Unoriented sample, sample burns under 780nm laser
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.
Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R050433
Wavelength:
Sample Description: Unoriented sample, sample burns under 780nm laser
Instrument settings: Thermo Almega XR 532nm @ 100% of 150mW
DOWNLOADS:

Raman Data (RAW) View Graph
RRUFF File

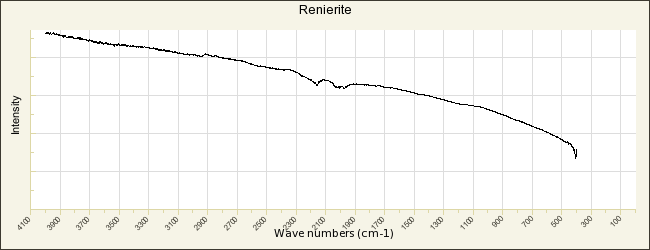

INFRARED SPECTRUM (Attenuated Total Reflectance)
RRUFF ID: R050433.1
Instrument settings: SensIR Durascope on a Nicolet Magna 860 FTIR
Resolution:
DOWNLOADS:

Infrared Data (Processed)
RRUFF File
X Min:    X Max:    X Sort:

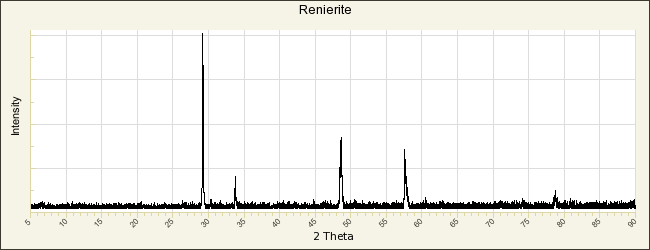

POWDER DIFFRACTION
RRUFF ID: R050433.1
Sample Description: Powder
Cell Refinement Output: a: 10.6141(7)Å    b: 10.6141(7)Å    c: 10.539(2)Å
alpha: 90.°    beta: 90.°    gamma: 90.°   Volume: 1187.3(2)Å3    Crystal System: tetragonal
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

DOWNLOADS:

Cell Refinement Data
Cell Refinement Output Data
DIF File
X-ray Data (XY - Processed)
RRUFF File
X-ray Data (XY - RAW) View Graph
RRUFF File
X Min:    X Max:    X Sort:
REFERENCES for Renierite

American Mineralogist Crystal Structure Database Record: [view record]

Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]

Vaes J F (1948) La reniérite (anciennement applelée «Bornite orange») Un sulfure germanifère provenant de la Mine Prince-Léopold, Kipushi (Congo Belge), Annales de la Société Géologique de Belgique, 72, 19-32

Fleischer M (1950) New mineral names, American Mineralogist, 35, 135-136   [view file]

Murdoch J (1953) X-ray investigation of colusite, germanite, and reniérite, American Mineralogist, 38, 794-801   [view file]

Strunz H (1959) Tsumeb, seine Erze und Sekundärmineralien, insbesondere der neu aufgeschlossenen zweiten Oxydationszone, Fortschritte der Mineralogie, 37, 87-90

Lévy C (1967) Contribution a la minéralogie des sulfures de cuivre du type Cu3XS4, Mémoires du Bureau de Recherches Géologiques et Minières, 54, 1-178   [view file]

Fleischer M (1968) New mineral names, American Mineralogist, 53, 2103-2106   [view file]

Bernstein L R (1986) Renierite, Cu10ZnGe2Fe4Si16-Cu11GeAsFe4S16: a coupled solid solution series, American Mineralogist, 71, 210-221   [view file]

Bernstein L R, Reichel D G, Merlino S (1989) Renierite crystal structure refined from Rietveld analysis of powder neutron-diffraction data, American Mineralogist, 74, 1177-1181   [view file]

Gill S B, Piercey S J, Layton-Matthews D (2016) Mineralogy and metal zoning of the Cambrian Zn-Pb-Cu-Ag-Au Lemarchant volcanogenic massive sulfide (VMS) deposit, Newfoundland, The Canadian Mineralogist, 54, 1307-1344
