Name: Cryolithionite
RRUFF ID: R080051
Ideal Chemistry: Na3Al2(LiF4)3
Locality: Zapot mine, Zapot amazonite-topaz-zinnwaldite pegmatite, Gillis Range, Mineral County, Nevada, USA
Source: Michael Scott S102718 [view label]
Owner: RRUFF
Description: Vitreous colorless fragment
Status: The identification of this mineral has been confirmed by single-crystal X-ray diffraction.
Mineral Group: [ garnet (97) ]
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Unoriented sample
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.
Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R080051
Wavelength:
Sample Description: Unoriented sample
Instrument settings: Thermo Almega XR 532nm @ 100% of 150mW
DOWNLOADS:

Raman Data (Processed)
RRUFF File
Raman Data (RAW) View Graph
RRUFF File

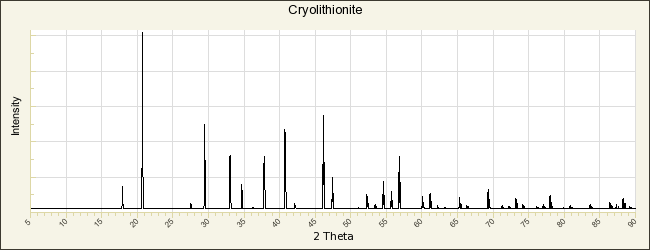

POWDER DIFFRACTION
RRUFF ID: R080051.9
Sample Description: Single crystal, powder profile is calculated
Cell Refinement Output: a: 12.119(1)Å    b: 12.119(1)Å    c: 12.119(1)Å
alpha: 90°    beta: 90°    gamma: 90°   Volume: 1779.9(2)Å3    Crystal System: cubic
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

DOWNLOADS:

DIF File
X-ray Data (XY - RAW) View Graph
RRUFF File
X Min:    X Max:    X Sort:
REFERENCES for Cryolithionite

American Mineralogist Crystal Structure Database Record: [view record]

Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]

Ussing N V (1904) Sur la cryolithionite, espèce minérale nouvelle, Oversigt over det Kongelige Danske Videnskabernes Selskabs Forhandlinger, 1904, 2-12   [view file]

Geller S (1971) Refinement of the crystal structure of cryolithionite, {Na3}[Al2](Li3)F12, American Mineralogist, 56, 18-23   [view file]

Grew E S, Locock A J, Mills S J, Galuskina I O, Galuskin E V, Hålenius U (2013) Nomenclature of the garnet supergroup, American Mineralogist, 98, 785-811   [view file]
