Name: Manganoeudialyte
RRUFF ID: R110212
Ideal Chemistry: Na14Ca6Mn3Zr3[Si26O72(OH)2](H2O,Cl,O,OH)6
Locality: Pocos de Caldas plateau, Minas Gerais, Brazil
Source: Gunnar Farber [view label]
Owner: RRUFF
Description: Red massive associated with orthoclase, nepheline and aegirine
Status: The identification of this mineral has been confirmed only by single crystal X-ray diffraction.
Mineral Group: [ eudialyte (13) ]
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Unoriented Raman on the primary sample; 780 nm spectrum is overwhelmed by fluorescence.
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.
Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R110212
Wavelength:
Sample Description: Unoriented Raman on the primary sample; 780 nm spectrum is overwhelmed by fluorescence.
Instrument settings: Thermo Almega XR 532nm @ 100% of 150mW
DOWNLOADS:

Raman Data (Processed)
RRUFF File

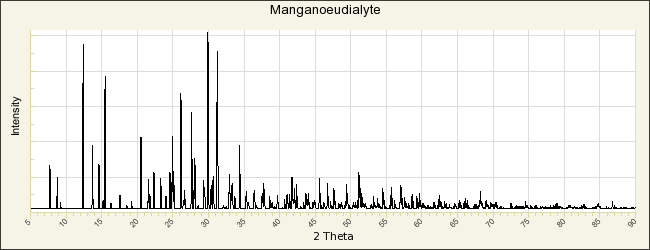

POWDER DIFFRACTION
RRUFF ID: R110212.9
Sample Description: Single crystal, powder profile is calculated
Cell Refinement Output: a: 14.277(1)Å    b: 14.277(1)Å    c: 30.265(2)Å
alpha: 90°    beta: 90°    gamma: 120°   Volume: 5342.3(6)Å3    Crystal System: hexagonal
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

DOWNLOADS:

DIF File
X-ray Data (XY - RAW) View Graph
RRUFF File
X Min:    X Max:    X Sort:
REFERENCES for Manganoeudialyte

American Mineralogist Crystal Structure Database Record: [view record]

Williams P A, Hatert F, Pasero M (2009) New minerals approved in 2009, in International Mineralogical Association 1-34   [view file]

Atencio D, Nomura S F, Chukanov N V, Rastsvetaeva R K, Coutinho J M V, Karipidis T K (2010) Manganoeudialyte, a new minera from Poços de Caldas, Minas Gerais, Brazil, Acta Mineralogica Petrographica Abstract Series. 20th General Meeting of the International Mineralogical Association 21-27 August, 2010. Budapest, Hungary, 64, 492-492   [view file]

Nomura S F, Atencio D, Chukanov N V, Rastsvetaeva R K, Coutinho J M V, Karipidis T K (2010) Manganoeudialyte - a new mineral from Poςos de Caldas, Minas Gerais, Brazil, Zapiski Rossiiskogo Mineralogicheskogo Obshchetstva, 139, 35-47   [view file]

Rastsvetaeva R K, Chukanov N V (2012) Classification of eudialyte-group minerals, Geology of Ore Deposits, 54, 487-497   [view file]

Tait K T, Belakovskiy D, Welch M D, Gatta G D, Cámara F (2012) New mineral names, American Mineralogist, 97, 1260-1265   [view file]
