Thorianite R130003

Browse Search Results
<< Previous |  Back to Search Results |  Next >>
Record 2 of 2


Name: Thorianite
RRUFF ID: R130003
Ideal Chemistry: ThO2
Locality: Millar's mine, Tory Hill, Monmouth Township, Haliburton County, Ontario, Canada
Source: Don Doell [view label]
Owner: RRUFF
Description: Broken black cubes
Status: The identification of this mineral has been confirmed by X-ray diffraction.
Mineral Group: [ Fluorite (12) ]
Quick search: [ All Thorianite samples (2) ]
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Unoriented Raman on the primary sample
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.
Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R130003
Wavelength:
Sample Description: Unoriented Raman on the primary sample
Instrument settings: Thermo Almega XR 532nm @ 100% of 150mW
DOWNLOADS:

Raman Data (Processed)
RRUFF File

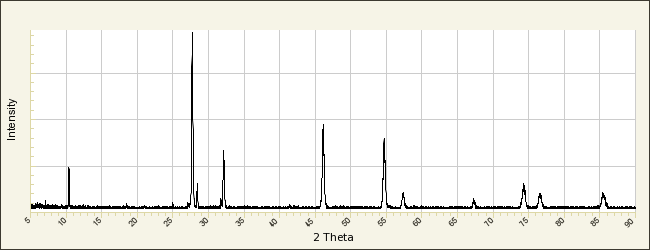

POWDER DIFFRACTION
RRUFF ID: R130003.1
Sample Description: Powder
Cell Refinement Output: a: 5.5605(2)Å    b: 5.5605(2)Å    c: 5.5605(2)Å
alpha: 90°    beta: 90°    gamma: 90°   Volume: 171.93(2)Å3    Crystal System: cubic
  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

DOWNLOADS:

Cell Refinement Output Data
X-ray Data (XY - Processed)
RRUFF File
X-ray Data (XY - RAW) View Graph
RRUFF File
X Min:    X Max:    X Sort:
REFERENCES for Thorianite

American Mineralogist Crystal Structure Database Record: [view record]

Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]

Dunstan W (1904) The occurrence of thorium in Ceylon, Nature, 69, 510-511   [view file]

Keramidas V G, White W B (1973) Raman spectra of oxides with the fluorite structure, The Journal of Chemical Physics, 59, 1561-1562

Bulakh A G, Mazalov A A (1974) Accessory thorianite from the massifs of alkaline rocks and carbonatites of Turja Peninsula (Kola Peninsula), American Mineralogist, 59, 378-380   [view file]

Teterin Y A, Utkin I O, Melnikov I V, Lebedev A M, Teterin A Y, Ivanov K E, Nikitin A S, Vukchevich L (2000) X-ray photoelectron study of thorium silicate ThSiO4·nH2O and uranium silicate USiO4·nH2O, Journal of Structural Chemistry, 41, 965-971

Giebel R J, Gauert C D K, Marks M A W, Costin G, Markl G (2017) Multi-stage formation of REE minerals in the Palabora Carbonatite Complex, South Africa, American Mineralogist, 102, 1218-1233

Chidester B A, Pardo O S, Fischer R A, Thompson E C, Heinz D L, Prescher C, Prakapenka V B, Campbell A J (2018) High-pressure phase behavior and equations of state of ThO2 polymorphs, American Mineralogist, 103, 749-756
