Vanadinite R050530

Name: Vanadinite
RRUFF ID: R050530
Ideal Chemistry: Pb₅(VO₄)₃Cl
Locality: Hillsboro, Sierra County, New Mexico, USA
Source: University of Arizona Mineral Museum 8261 [view label]
Owner: RRUFF
Description: Yellow hexagonal prisms
Status: The identification of this mineral has been confirmed by X-ray diffraction and chemical analysis

Mineral Group: [ Apatite (56) ]

Quick search: [ All Vanadinite samples (5) ]

CHEMISTRY

RRUFF ID:	R050530.2
Sample Description:	Microprobe fragment
Measured Chemistry:	Pb_5.00((V_0.93As_0.07)O₄)₃Cl_1.00

RAMAN SPECTRUM

RRUFF ID:

Sample Description:

Unoriented sample

DOWNLOADS:

To download sample data,
please select a specific
orientation angle.

BROAD SCAN WITH SPECTRAL ARTIFACTS

RRUFF ID:

R050530

Wavelength:

Sample Description:

Unoriented sample

Instrument settings:

Thermo Almega XR 532nm @ 100% of 150mW

DOWNLOADS:

	Raman Data (Processed)
	RRUFF File
	Raman Data (RAW)
	RRUFF File

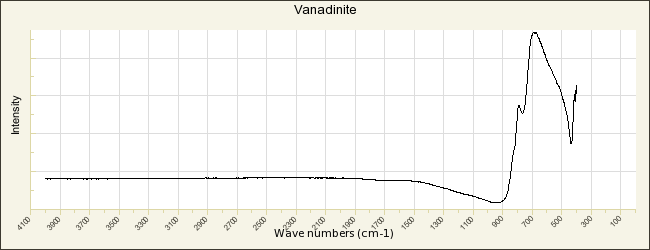

INFRARED SPECTRUM (Attenuated Total Reflectance)

RRUFF ID:

R050530.1

Sample Description:

Powder

Instrument settings:

SensIR Durascope on a Nicolet Magna 860 FTIR

Resolution:

DOWNLOADS:

	Infrared Data (Processed)
	RRUFF File

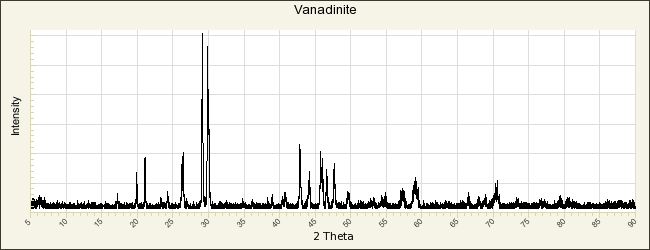

POWDER DIFFRACTION

RRUFF ID:

R050530.1

Sample Description:

Powder

Cell Refinement Output:

a: 10.3231(3)Å b: 10.3231(3)Å c: 7.3560(5)Å
alpha: 90.° beta: 90.° gamma: 120.° Volume: 678.89(6)Å³ Crystal System: hexagonal

File Type Information

Calculated diffraction file.

File Type Information

Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

File Type Information

Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

DOWNLOADS:

	Cell Refinement Data
	Cell Refinement Output Data
	DIF File
	X-ray Data (XY - Processed)
	RRUFF File
	X-ray Data (XY - RAW)
	RRUFF File

REFERENCES for Vanadinite
American Mineralogist Crystal Structure Database Record: [view record]
Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]
von Kobell F (1838) Vanadinit, in Grundzüge der Mineralogie Nürnberg 283-283 [view file]
Rammelsberg C (1880) Ueber die Vanadinerze aus dem Staat Córdoba in Argentinien, Zeitschrift der Deutschen Geologischen Gesellschaft, 32, 708-713 [view file]
Trotter J, Barnes W H (1958) The structure of vanadinite, The Canadian Mineralogist, 6, 161-173 [view file]
Barnes W H (1962) Shorter communications: The X-ray diffraction powder pattern of vanadinite, The Canadian Mineralogist, 7, 301-306 [view file]
Dai Y, Hughes J M (1989) Crystal-structure refinements of vanadinite and pyromorphite, The Canadian Mineralogist, 27, 189-192 [view file]
Shannon R D, Shannon R C, Medenbach O, Fischer R X (2002) Refractive index and dispersion of fluorides and oxides, Journal of Physical and Chemical Reference Data, 31, 931-970 [view file]
Frost R L, Crane M, Williams P A, Kloprogge J T (2003) Isomorphic substitution in vanadinite [Pb₅(VO₄)₃Cl] - a Raman spectroscopic study, Journal of Raman Spectroscopy, 34, 214-220
Laufek F, Skala R, Haloda J, Cisarova I (2009) Crystal structure of vanadinite: refinement of anisotropic displacement parameters, Journal of the Czech Geological Society, 51, 271-275
Redfern S A T, Smith S E, Maddrell E R (2012) High-temperature breakdown of the synthetic iodine analogue of vanadinite, Pb₅(VO₄)₃I: an apatite-related compound for iodine radioisotope immobilization, Mineralogical Magazine, 76, 997-1003 [view file]
Okudera H (2013) Relationships among channel typology and atomic displacements in the structures of Pb₅(BO₄)₃Cl with B = P (pyromorphite), V (vanadinite), and As (mimetite), American Mineralogist, 98, 1573-1579
Baikie R, Schreyer M, Wei F, Herrin J S, Ferraris C, Brink F, Topolska J, Piltz R O, Price J, White T J (2014) The influence of stereochemically active lone-pair electrons on crystal symmetry and twist angles in lead apatite-2H type structures, Mineralogical Magazine, 78, 325-345
Markl G, Marks M A W, Holzäpfel J, Wenzel T (2014) Major, minor, and trace element composition of pyromorphite-group minerals as recorder of supergene weathering processes from the Schwarzwald mining district, SW Germany, American Mineralogist, 99, 1133-1146
Epp T, Marks M A W, Ludwig T, Kendrick M A, Eby N, Neidhardt H, Oelmann Y, Markl G (2019) Crystallographic and fluid compositional effects on the halogen (Cl, F, Br, I) incorporation in pyromorphite-group minerals, American Mineralogist, 104, 1673-1688
