Wollastonite R120122

Name: Wollastonite
RRUFF ID: R120122
Ideal Chemistry: CaSiO₃
Locality: Fuka mine, Bicchu-cho, Okayama Prefecture, Japan
Source: Marcus Origlieri
Owner: RRUFF
Description: Colorless platy, frozen in matrix, polytype 2M, associated with perovskite R120121, spurrite and gehlenite
Status: The identification of this mineral has been confirmed by single-crystal X-ray diffraction.

Mineral Group: [ Wollastonite (6) ]

Quick search: [ All Wollastonite samples (4) ]

RAMAN SPECTRUM

RRUFF ID:

Sample Description:

Unoriented sample

DOWNLOADS:

To download sample data,
please select a specific
orientation angle.

BROAD SCAN WITH SPECTRAL ARTIFACTS

RRUFF ID:

R120122

Wavelength:

Sample Description:

Unoriented sample

Instrument settings:

Thermo Almega XR 532nm @ 100% of 150mW

DOWNLOADS:

	Raman Data (Processed)
	RRUFF File

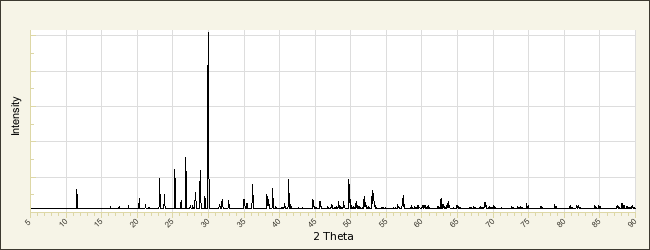

POWDER DIFFRACTION

RRUFF ID:

R120122.9

Sample Description:

Single crystal, powder profile is calculated

Cell Refinement Output:

a: 15.440(1)Å b: 7.3288(8)Å c: 7.0757(7)Å
alpha: 90° beta: 95.409(6)° gamma: 90° Volume: 797.1(2)Å³ Crystal System: monoclinic

File Type Information

Calculated diffraction file.

File Type Information

Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

DOWNLOADS:

	DIF File
	X-ray Data (XY - RAW)
	RRUFF File

REFERENCES for Wollastonite
American Mineralogist Crystal Structure Database Record: [view record]
Campmas P J L (1818) Chapitre CX. Des substances cristallisées renfermées dans les laves, in Institution Géologiques par Scipion Breislak, Volume 3 Milan 192-215 [view file]
Leman J (1818) Meionite, Nouveau Dictionnaire d'Histoire Naturelle, 20, 28-31 [view file]
von Kobell F (1843) Ueber den Spadaït, eine neue Mineralspecies, und über den Wollastonit von Capo di bove, Journal für Praktische Chemie, 30, 467-471 [view file]
von Kobell F (1843) Ueber den Spadait, eine neue Mineral-species, und über den Wollastonit von Capo di bove, Gelehrte Anzeigen der Königlich Bayerischen Akademie der Wissenschaften, 17, 945-950 [view file]
Vogt I H L (1892) Hexagonales Kalksilikat (CaSiO₃) und Wollastonit (CaSiO₃), 1, in Beiträge zur Kenntniss der Gesetze der Mineralbildung in Schmelzmassen und in den Neovulkanischen Ergussgesteinen Alb. Cammermeyer Verlag Kristiania [Oslo] 56-71 [view file]
Allen E T, White W P, Wright F E (1906) On wollastonite and psuedo-wollastonite. Polymorphic forms of calcium metasilicate, with optical study by F. E. Wright, American Journal of Science, 21, 89-108 [view file]
Bowen N L (1922) Two corrections to new data, American Mineralogist, 7, 64-66 [view file]
Simonen A (1952) Mineralogy of the wollastonites found in Finland, Bulletin de la Commission Géologique de Findlande, 27, 9-18 [view file]
Mamedov K S, Belov N V (1956) The crystal structure of wollastonite, Doklady Akademii Nauk SSSR, 107, 463-466 [view file]
International Mineralogical Association (1962) International Mineralogical Association: Commission on new minerals and mineral names, Mineralogical Magazine, 33, 260-263 [view file]
Ringwood A E, Major A (1967) Some high-pressure transformations of geophysical significance, Earth and Planetary Science Letters, 2, 106-110
Trojer F J (1967) Crystal structure of parawollastonite, Naturwissenschaften, 54, 536-536
Trojer F J (1968) The crystal structure of parawollastonite, Zeitschrift für Kristallographie, 127, 291-308 [view file]
Trojer F J (1969) The crystal structure of a high pressure polymorph of CaSiO₃, Zeitschrift für Kristallographie, 130, 185-206 [view file]
Essene E (1974) High-pressure transformations in CaSiO3, Contributions to Mineralogy and Petrology, 45, 247-250
Bailey S W (1977) Report of the I.M.A-I.U.Cr. Joint Committee on Nomenclature, American Mineralogist, 62, 411-415 [view file]
Ohashi Y, Finger L W (1978) The role of octahedral cations in pyroxenoid crystal chemistry. I. Bustamite, wollastonite, and the pectolite–schizolite–serandite series, American Mineralogist, 63, 274-288 [view file]
Fleischer M, Mandarino J A, Chao G Y (1979) New mineral names, American Mineralogist, 64, 652-659 [view file]
Machida K, Adachi G, Shiokawa J, Shimada M, Zoizumi M, Suito K, Onodera A (1982) High-pressure synthesis, crystal structures, and luminescence properties of europium (II) metasilicate and europium (II)-activated calcium and strontium metasilicates, Inorganic Chemistry, 21, 1512-1519
Henmi C, Kawahara A, Henmi K, Kusachi I, Takéuchi Y (1983) The 3T, 4T and 5T polytypes of wollastonite from Kushiro, Hiroshima Prefecture, Japan, American Mineralogist, 68, 156-163 [view file]
Ohashi, Y. (1984) Polysynthetically-twinned structures of enstatite and wollastonite, Physics and Chemistry of Minerals, 10, 217-229
Kanzaki M, Stebbins J F, Xue X (1991) Characterization of quenched high pressure phases in CaSiO3 system by XRD and 29Si NMR, Geophysical Research Letters, 18, 463-466
Nickel E H (1993) Standardization of polytype suffixes, Mineralogical Magazine, 57, 756-756 [view file]
Serghiou G C, Hammack W S (1993) Pressure-induced amorphization of wollastonite (CaSiO3) at room temperature, The Journal of Chemical Physics, 98, 9830
Nickel E H (1994) Standardisation of polytype suffixes, Mineralogy and Petrology, 50, issue 4 293-294
Barbier J, Lévy D (1997) Crystal structures of Ca₅Ge₃O₁₁ and wollastonite-type GaGeO₃, Zeitschrift für Kristallographie, 212, 519-528
Swamy V, Dubrovinsky L S, Tutti F (1997) High-temperature Raman spectra and thermal expansion of wollastonite, Journal of the American Ceramic Society, 80, issue 9 2237-2247
Swamy V, Dubrovinsky L S (1997) Thermodynamic data for the phases in the CaSiO3 system, Geochimica et Cosmochimica Acta, 61, 1181-1191
Richet P, Mysen B, Ingrin J (1998) High-temperature X-ray diffraction and Raman spectroscopy of diopside and pseudowollastonite, Physics and Chemistry of Minerals, 25, 401-414 [link]
Huang E, Chen C H, Huang T, Lin E H, Xu J (2000) Raman spectroscopic characteristics of Mg-Fe-Ca pyroxenes, American Mineralogist, 85, 473-479 [view file]
Akaogi M, Yano M, Tejima Y, Iijima M, Kojitani H (2004) High-pressure transition of diopside and wollastonite: phase equilibria and thermochemistry of CaMgSi2O6, CaSiO3 and CaSi2O5--CaTiSiO5 system, Physics of The Earth and Planetary Interiors, 143, 145-156
Brenker F E, Vollmer C, Vincze L, Vekemans B, Szymanski A, Janssens K, Szaloki I, Nasdala L, Joswig W, Kaminsky F (2006) CO2-recycling to the deep convecting mantle, Goldschmidt Conference Abstracts 2006, 2006, A39
Buzatu A, Buzgar N (2010) The Raman study of single-chain silicates, Analele Stiintifice Ale Universitatii, Al. I. Cuza Iasi Geologie, 56, 107-125 [view file]
Barkley M C, Downs R T, Yang H (2011) Structure of walstromite, BaCa₂Si₃O₉, and its relationship to CaSiO₃-walstromite and wollastonite-II, American Mineralogist, 96, 797-801 [view file]
Thompson R M, Yang H, Downs R T (2016) Ideal wollastonite and the structural relationship between the pyroxenoids and pyroxenes, American Mineralogist, 101, 2544-2553
Grey I E, Keck E, Macrae C M, Glenn A M, Mumme W G, Kampf A R, Cashion J D (2018) Secondary Zn-bearing phosphate minerals associated with alteration of phosphophyllite at Hagendorf-Süd, Bavaria, European Journal of Mineralogy, 30, 1007-1020
