Name: Wurtzite
RRUFF ID: R130069
Ideal Chemistry: ZnS
Locality: Merelani Hills (Mererani), Lelatema Mountains, Arusha Region, Tanzania
Source: William W. Pinch [view label]
Owner: RRUFF
Description: Reddish brown blocky crystals, polytype wurtzite-4H
Status: The identification of this mineral has been confirmed by single-crystal X-ray diffraction.
Mineral Group: [ Wurtzite (20) ]
Quick search: [ All Wurtzite samples (2) ]
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Unoriented sample; 532 and 780 nm spectra are overwhelmed by fluorescence
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.

Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R130069
Wavelength:
Sample Description: Unoriented sample; 532 and 780 nm spectra are overwhelmed by fluorescence
Instrument settings: Thermo Almega XR 532nm @ 40% of 150mW

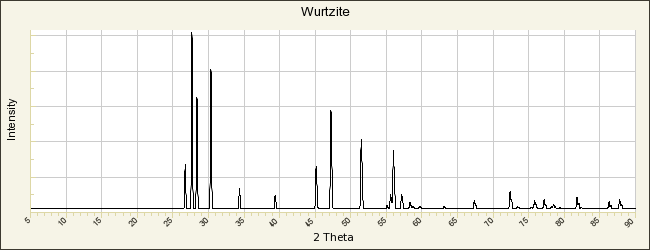

POWDER DIFFRACTION
RRUFF ID: R130069.9
Sample Description: Single crystal, powder profile is calculated
Cell Refinement Output: a: 3.849(2)Å    b: 3.849(2)Å    c: 12.575(5)Å
alpha: 90°    beta: 90°    gamma: 120°   Volume: 161.34(4)Å3    Crystal System: hexagonal
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

X Min:    X Max:    X Sort:
REFERENCES for Wurtzite

American Mineralogist Crystal Structure Database Record: [view record]

Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]

Friedel C (1861) Sur le dimorphisme du sulfure de zinc, Comptes Rendus de l'Académie des Sciences de Paris, 52, 983-985   [view file]

Fleischer M (1948) New mineral names, American Mineralogist, 33, 653-654   [view file]

Frondel C, Palache C (1950) Three new polymorphs of zinc sulfide, American Mineralogist, 35, 29-42   [view file]

Mloszewski M J, Saha A K, Nuffield E W (1957) Manganoan ferroan wurtzite from Llallagua, Bolivia (II), The Canadian Mineralogist, 6, 136-139   [view file]

Sokhor M I, Glukhov V P (1965) Silicon carbides with the wurtzite structure, Soviet Physics - Crystallography, 10, 341-343   [view file]

Scott S D, Barnes H L (1967) Abstract of paper presented at the twelfth annual meeting: Nonstoichiometric phase changes in sphalerite and wurtzite, The Canadian Mineralogist, 9, 306-306   [view file]

Brafman O, Mitra S S (1968) Raman effect in wurtzite- and zinc-blende-type ZnS single crystals, Physical Review, 171, 931-934

Arguello C A, Rousseau D L, Porto S P S (1969) First-order Raman effect in wurtzite-type crystals, Physical Review, 181, 1351-1363

Bailey S W (1977) Report of the I.M.A-I.U.Cr. Joint Committee on Nomenclature, American Mineralogist, 62, 411-415   [view file]

Hollenbaugh D W, Carlson E H (1983) The occurrence of wurtzite polytypes in eastern Ohio, The Canadian Mineralogist, 21, 697-703   [view file]

Seal R R, Cooper B J, Craig J R (1985) Anisotropic sphalerite of the Elmwood-Gordonsville deposits, Tennessee, The Canadian Mineralogist, 23, 83-88   [view file]

Kisi E H, Elcombe M M (1989) υ parameters for the wurtzite structure of ZnS and ZnO using powder neutron diffraction, Acta Crystallographica, C45, 1867-1870

Ueno T, Scott S D (1991) Solubility of gallium in sphalerite and wurtzite at 800°C and 900°C, The Canadian Mineralogist, 29, 143-148   [view file]

Xu Y-N, Ching W Y (1993) Electronic, optical, and structural properties of some wurtzite crystals, Physical Review B - Condensed Matter, 48, 4335-4351

Ueno T, Scott S D, Kojima S (1996) Inversion between sphalerite- and wurtzite-type stuctures in the system Zn–Fe–Ga–S, The Canadian Mineralogist, 34, 949-958   [view file]

Chao G Y, Gault R A (1998) The occurrence of two rare polytypes of wurtzite, 4H and 8H, at Mont Saint-Hilaire, Quebec, The Canadian Mineralogist, 36, 775-778   [view file]

Ulian G, Moro D, Valdrè G (2020) Thermodynamic and thermoelastic properties of wurtzite-ZnS by density functional theory, American Mineralogist, 105, 1212-1222
