Aurichalcite R060426



Name: Aurichalcite
RRUFF ID: R060426
Ideal Chemistry: (Zn,Cu)5(CO3)2(OH)6
Locality: Bisbee, Cochise County, Arizona, USA
Source: Michael Scott S100291 [view label]
Owner: RRUFF
Description: Divergent sprays of light blue lathlike crystals
Status: The identification of this mineral is confirmed by single-crystal X-ray diffraction and chemical analysis.
Quick search: [ All Aurichalcite samples (2) ]
CHEMISTRY
RRUFF ID: R060426.2
Sample Description: Microprobe fragment
Measured Chemistry: (Zn3.61Cu1.33Fe2+0.06)Σ=5(CO3)2(OH)6
Microprobe Data File: [ Download Excel File ]
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Unoriented Raman on the primary sample
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.

Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R060426
Wavelength:
Sample Description: Unoriented Raman on the primary sample
Instrument settings: Thermo Almega XR 532nm @ 100% of 150mW

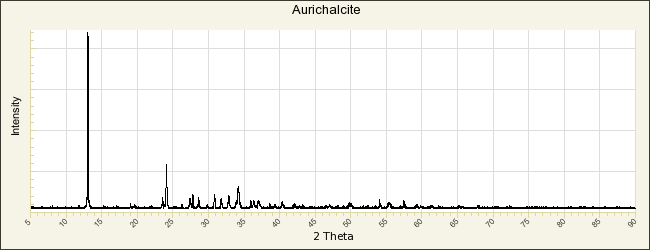

POWDER DIFFRACTION
RRUFF ID: R060426.1
Sample Description: Powder
Cell Refinement Output: a: 13.802(1)Å    b: 6.4105(3)Å    c: 5.2917(6)Å
alpha: 90.°    beta: 100.722(7)°    gamma: 90.°   Volume: 460.04(5)Å3    Crystal System: monoclinic
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

X Min:    X Max:    X Sort:
REFERENCES for Aurichalcite

American Mineralogist Crystal Structure Database Record: [view record]

Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]

Boettger T (1839) Chemische Untersuchung des Aurichalcits, eines neuen Kupfererzes vom Altai, Annalen der Physik und Chemie, 48, 495-500   [view file]

Jambor J L, Pouliot G (1965) X–ray crystallography of aurichalcite and hydrozincite, The Canadian Mineralogist, 8, 385-389   [view file]

Harding M M, Kariuki B M, Cernik R, Cressey G (1994) The structure of aurichalcite, (Cu, Zn)5(OH)6(CO3)2, determined from a microcrystal, Acta Crystallographica, B50, 673-676

Jambor J L, Roberts A C, (1995) New mineral names, American Mineralogist, 80, 1073-1077   [view file]

Frost R L, Hales M C, Wain D L (2008) Raman spectroscopy of smithsonite, Journal of Raman Spectroscopy, 39, 108-114

Buzgar N, Apopei A I (2009) The Raman study of certain carbonates, Analele Stiintifice Ale Universitatii, Al. I. Cuza Iasi Geologie, 55, 97-112   [view file]

Giester G, Rieck B (2014) Crystal structure refinement of aurichalcite, (Cu,Zn)5(CO3)2(OH)6, from the Lavrion Mining District, Greece, Neues Jahrbuch für Mineralogie, Abhandlungen, 191, 225-232

Kolitsch U, Rieck B, Brandstätter F, Schreiber F, Fabritz K H, Blaß G, Gröbner J (2014) Neufunde aus dem altem Bergbau und den Schlacken von Lavrion (II), Mineralien Welt, 25, 82-95
