Name: Burbankite
RRUFF ID: R050646
Ideal Chemistry: (Na,Ca)3(Sr,Ba,Ce)3(CO3)5
Locality: Cerro Sapo, Cochabamba Department, Bolivia
Source: Marcus Origlieri
Owner: RRUFF
Description: Brown prismatic crystals associated with blue sodalite, R060405, and dolomite
Status: The identification of this mineral has been confirmed by X-ray diffraction and chemical analysis
Mineral Group: [ burbankite (8) ]
Quick search: [ All Burbankite samples (3) ]
CHEMISTRY
RRUFF ID: R050646.2
Sample Description: Microprobe Fragment
Measured Chemistry: gray: (Na2.03Ca0.97)Σ=3(Sr3.14Ba0.18Ce0.17◻0.15Th0.10Nd0.08La0.08)Σ=3(CO3)5 ; light-gray: (Na1.97Ca1.03)Σ=3(Sr1.87◻0.40Ba0.37Ce0.14Th0.11Nd0.06La0.05)Σ=3(CO3)5 ; C estimated by stoichiometry
Microprobe Data File: [ Download Excel File ]
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Unoriented sample
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.
Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:

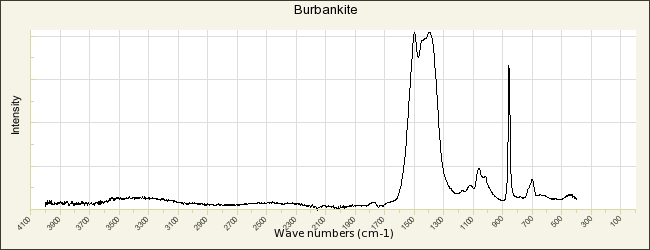

BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R050646
Wavelength:
Sample Description: Unoriented sample
Instrument settings: Thermo Almega XR 532nm @ 100% of 150mW
DOWNLOADS:

Raman Data (RAW) View Graph
RRUFF File
INFRARED SPECTRUM (Attenuated Total Reflectance)
RRUFF ID: R050646.1
Instrument settings: SensIR Durascope on a Nicolet Magna 860 FTIR
Resolution:
DOWNLOADS:

Infrared Data (Processed)
RRUFF File
X Min:    X Max:    X Sort:
POWDER DIFFRACTION
RRUFF ID: R050646.1
Sample Description: Powder
Cell Refinement Output: a: 10.5173(5)Å    b: 10.5173(5)Å    c: 6.4759(4)Å
alpha: 90.°    beta: 90.°    gamma: 120.°   Volume: 620.36(4)Å3    Crystal System: hexagonal
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

DOWNLOADS:

Cell Refinement Data
Cell Refinement Output Data
DIF File
X-ray Data (XY - Processed)
RRUFF File
X-ray Data (XY - RAW) View Graph
RRUFF File
X Min:    X Max:    X Sort:
REFERENCES for Burbankite

American Mineralogist Crystal Structure Database Record: [view record]

Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]

Pecora W T, Kerr J H (1953) Burbankite and calkinsite, two new carbonate minerals from Montana, American Mineralogist, 38, 1169-1183   [view file]

Fleischer M (1954) New mineral names, American Mineralogist, 39, 402-408   [view file]

Voronkov A A, Shumyatskaya N G (1968) X-ray diffraction study of the structure of berbankite, (Na, Ca)3(Ca,Sr,Ba,Tr)3(CO3)5, Soviet Physics - Crystallography, 13, 192-196   [view file]

Chen T T, Chao G Y (1974) Burbankite from Mont St. Hilaire, Quebec, The Canadian Mineralogist, 12, 342-345   [view file]

Zaitsev A N, Wall F, Le Bas M J (1998) REE-Sr-Ba minerals from the Khibina carbonatites, Kola Peninsula, Russia: their mineralogy, paragenesis and evolution, Mineralogical Magazine, 62(2), 225-250   [view file]

Bühn B, Rankin A H, Radtke M, Haller M, Knöchel A (1999) Burbankite, a (Sr,REE, Na, Ca)-carbonate in fluid inclusions from carbonatite-derived fluids: Identification and characterization using laser Raman spectroscopy, SEM-EDX, and synchrotron micro-XRF analysis, American Mineralogist, 84, 1117-1125   [view file]

Belovitskaya Y V, Pekov I V, Kabalov Y K (2000) Refinement of the crystal structures of low-rare-earth and “typical” burbankites by the Rietveld method, Crystallography Reports, 45, 26-29

Belovitskaya Y V, Pekov I V (2004) Genetic mineralogy of the burbankite group, New Data on Minerals. Moscow, 39, 50-64   [view file]

Sokolov S V, Rassulov V A (2004) Luminescence characteristics of the burbankite group minerals, Zapiski Vserossijskogo Mineralogicheskogo Obshchestva, 133, issue 6 73-88   [view file]

Onac B P, Bernhardt H J, Effenberger H (2009) Authigenic burbankite in the Cioclovina Cave sediments (Romania), European Journal of Mineralogy, 21, 507-514

Giebel R J, Gauert C D K, Marks M A W, Costin G, Markl G (2017) Multi-stage formation of REE minerals in the Palabora Carbonatite Complex, South Africa, American Mineralogist, 102, 1218-1233

Milani S, Spartà D, Fumagalli P, Joseph B, Borghes R, Chenda V, Maurice J, Bais G, Merlini M (2022) High-pressure and high-temperature structure and equation of state of Na3Ca2La(CO3)5 burbankite, European Journal of Mineralogy, 34, 351-358   [view file]

Nikolenko A M, Stepanov K M, Roddatis V, Veksler I V (2022) Crystallization of bastnäsite and burbankite from carbonatite melt in the system La(CO3)F-CaCO3-Na2CO3 at 100 MPa, American Mineralogist, 107, 2242-2250
