Glauberite R050350

Browse Search Results
<< Previous |  Back to Search Results |  Next >>
Record 1 of 2

Name: Glauberite
RRUFF ID: R050350
Ideal Chemistry: Na2Ca(SO4)2
Locality: Soda Lake, San Luis Obispo County, California, USA
Source: California Institute of Technology
Owner: RRUFF
Description: Colorless tabular crystal
Status: The identification of this mineral has been confirmed by X-ray diffraction and chemical analysis
Quick search: [ All Glauberite samples (2) ]
CHEMISTRY
RRUFF ID: R050350.2
Sample Description: Microprobe Fragment
Measured Chemistry: Na1.90Ca1.15(S.99O4)2
Microprobe Data File: [ Download Excel File ]
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Unoriented sample
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.
Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R050350
Wavelength:
Sample Description: Unoriented sample
Instrument settings: Thermo Almega XR 532nm @ 100% of 150mW
DOWNLOADS:

Raman Data (RAW) View Graph
RRUFF File

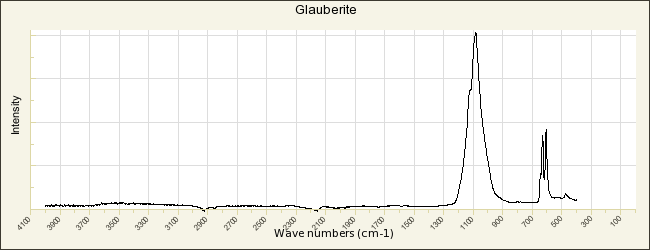

INFRARED SPECTRUM (Attenuated Total Reflectance)
RRUFF ID: R050350.1
Instrument settings: SensIR Durascope on a Nicolet Magna 860 FTIR
Resolution:
DOWNLOADS:

Infrared Data (Processed)
RRUFF File
X Min:    X Max:    X Sort:

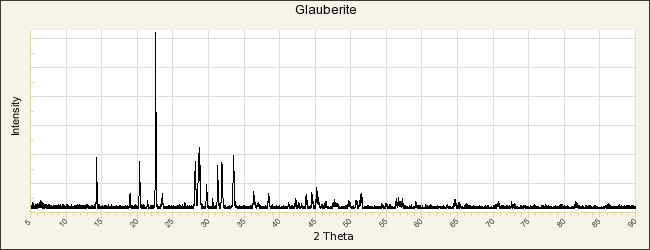

POWDER DIFFRACTION
RRUFF ID: R050350.1
Sample Description: Powder
Cell Refinement Output: a: 10.135(1)Å    b: 8.3046(8)Å    c: 8.539(2)Å
alpha: 90.°    beta: 112.21(2)°    gamma: 90.°   Volume: 665.3(1)Å3    Crystal System: monoclinic
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

DOWNLOADS:

Cell Refinement Data
Cell Refinement Output Data
DIF File
X-ray Data (XY - Processed)
RRUFF File
X-ray Data (XY - RAW) View Graph
RRUFF File
X Min:    X Max:    X Sort:
REFERENCES for Glauberite

American Mineralogist Crystal Structure Database Record: [view record]

Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]

Brongniart A (1808) Sur une nouvelle espèce de minéral de la classe des sels, nommée glauberite, Journal des Mines, 23, 5-20   [view file]

Schaller W T, Henderson E P (1932) Mineralogy of drill cores from the potash field of New Mexico and Texas, U.S. Geological Survey Bulletin, 833, 1-124   [view file]

Cocco G, Corazza E, Sabelli C (1965) The crystal structure of glauberite, CaNa2(SO4)2, Zeitschrift für Kristallographie, 122, 175-184   [view file]

Araki T, Zoltai T (1967) Refinement of the crystal structure of a glauberite, American Mineralogist, 52, 1272-1277   [view file]

Lane M D (2007) Mid-infrared emission spectroscopy of sulfate and sulfate-bearing minerals, American Mineralogist, 92, 1-18   [view file]
