Munakataite R110006

Browse Search Results
<< Previous |  Back to Search Results |  Next >>
Record 185 of 293


Name: Munakataite
RRUFF ID: R110006
Ideal Chemistry: Pb2Cu2(Se4+O3)(SO4)(OH)4
Locality: Tonopah-Belmont mine, Maricopa County, Arizona, USA
Source: Marcus Origlieri [view label]
Owner: RRUFF
Description: Jackstraw aggregate of blue bladed crystals
Status: The identification of this mineral has been confirmed only by single crystal X-ray diffraction.
Mineral Group: [ Linarite (8) ]
Quick search: [ All Munakataite samples (3) ]
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Unoriented Raman on the primary sample
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.
Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R110006
Wavelength:
Sample Description: Unoriented Raman on the primary sample
Instrument settings: Thermo Almega XR 532nm @ 65% of 150mW
DOWNLOADS:

Raman Data (RAW) View Graph
RRUFF File

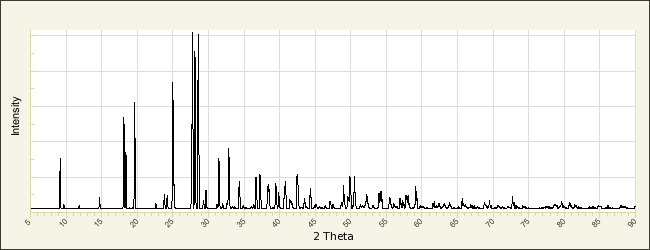

POWDER DIFFRACTION
RRUFF ID: R110006.9
Sample Description: Single crystal, powder profile is calculated
Cell Refinement Output: a: 9.865(7)Å    b: 5.683(3)Å    c: 9.355(8)Å
alpha: 90°    beta: 102.29(4)°    gamma: 90°   Volume: 512.4(2)Å3    Crystal System: monoclinic
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

DOWNLOADS:

DIF File
X-ray Data (XY - RAW) View Graph
RRUFF File
X Min:    X Max:    X Sort:
REFERENCES for Munakataite

American Mineralogist Crystal Structure Database Record: [view record]

Matsubara S, Mouri T, Miyawaki R, Yokoyama K, Nakahara M (2008) Munakataite, a new mineral from the Kato mine, Fukuoka, Japan, Journal of Mineralogical and Petrological Sciences, 103, 327-332   [view file]

Ercit T S, Piilonen P C, Poirier G, Tait K T (2009) New mineral names, American Mineralogist, 94, 1075-1083   [view file]

Kampf A R, Mills S J, Housley R M (2010) The crystal structure of munakataite, Pb2Cu2(Se4+O3)(SO4)(OH)4, from Otto Mountain, San Bernardino County, California, USA, Mineralogical Magazine, 74, 991-998   [view file]

Marty J, Kampf A R, Housley R M, Mills S J, Weiβ S (2010) Seltene neue Tellurmineralien aus Kalifornien, Utah, Arizona und New Mexico (USA), Lapis, 35, 42-51; 66

Flynn S, Barton I F, Feinglos M (2016) Munakataite, Pb2Cu2(Se4+O3)(SO4)(OH)4, and other selenium minerals from Tsumeb, Nambia, Rocks and Minerals, 91, 548-551
