D R080097 - RRUFF Database: Raman, X-ray, Infrared, and Chemistry

Synadelphite R080097

Name: Synadelphite
RRUFF ID: R080097
Ideal Chemistry: Mn²⁺₉(AsO₄)₂(AsO₃)(OH)₉·2H₂O
Locality: Moss mine, Nordmark, Varmland, Sweden
Source: William W Pinch [view label]
Owner: RRUFF
Description: Black psuedo-octahedral with cube modifications. Cell parameters are significantly smaller than expected but full data collection confirmed the synadelphite structure
Status: The identification of this mineral is not yet confirmed.

Quick search: [ All Synadelphite samples (2) ]

RAMAN SPECTRUM

RRUFF ID:

Sample Description:

Unoriented sample

DOWNLOADS:

To download sample data,
please select a specific
orientation angle.

BROAD SCAN WITH SPECTRAL ARTIFACTS

RRUFF ID:

R080097

Wavelength:

Sample Description:

Unoriented sample

Instrument settings:

Thermo Almega XR 532nm @ 100% of 150mW

DOWNLOADS:

	Raman Data (Processed)
	RRUFF File

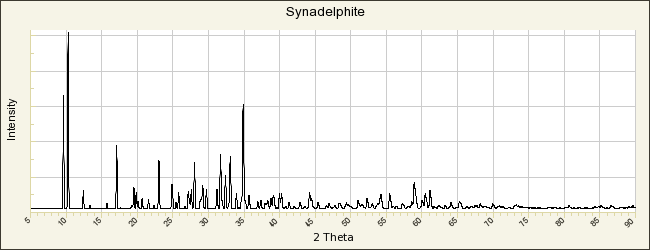

POWDER DIFFRACTION

RRUFF ID:

R080097.9

Sample Description:

Single crystal, powder profile is calculated

Cell Refinement Output:

a: 10.4636(6)Å b: 18.361(1)Å c: 9.7304(5)Å
alpha: 90° beta: 90° gamma: 90° Volume: 1869.4(3)Å³ Crystal System: orthorhombic

File Type Information

Calculated diffraction file.

File Type Information

Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

DOWNLOADS:

	DIF File
	X-ray Data (XY - RAW)
	RRUFF File

REFERENCES for Synadelphite
American Mineralogist Crystal Structure Database Record: [view record]
Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]
Sjögren A (1884) Kristallografiska studier: VII Allaktit från Nordmarken, Geologiska Föreningens i Stockholm Förhandlingar, 7, 220-236 [view file]
Sjögren A (1884) Kristallografiska studier: X. Synadelphit från Nordmarken, Geologiska Föreningens i Stockholm Förhandlingar, 7, 382-386 [view file]
Hurlbut C S (1937) On synadelphite and plumbosynadelphite, American Mineralogist, 22, 526-533 [view file]
Fleischer M (1968) New mineral names, American Mineralogist, 53, 1775-1780 [view file]
Welin E (1968) Notes on the mineralogy of Sweden 6. X-ray powder data for minerals from Långban and the related mineral deposits of Central Sweden, Arkiv för Mineralogi och Geologi, 4, 499-541
Moore P B (1970) Crystal chemistry of the basic manganese arsenates: IV. mixed arsenic valences in the crystal structure of synadelphite, American Mineralogist, 55, 2023-2037 [view file]
