Edingtonite R040003 - RRUFF Database: Raman, X-ray, Infrared, and Chemistry

Edingtonite R040003

Name: Edingtonite
RRUFF ID: R040003
Ideal Chemistry: Ba(Si₃Al₂)O₁₀·4H₂O
Locality: Bohl, Sweden
Source: University of Arizona Mineral Museum 2960 [view label]
Owner: RRUFF
Description: Colorless tetragonal prism
Status: The identification of this mineral has been confirmed by X-ray diffraction and chemical analysis

Mineral Group: [ Edingtonite (2) ]

Quick search: [ All Edingtonite samples (2) ]

CHEMISTRY

RRUFF ID:	R040003.2
Sample Description:	Microprobe Fragment
Measured Chemistry:	Ba_1.00(Si_3.00Al_2.00)O₁₀·4H₂O; trace amounts of Na; H₂O estimated by difference
Microprobe Data File:	[ Download Excel File ]

RAMAN SPECTRUM

RRUFF ID:

Sample Description:

Sample is oriented, mounted onto a pin and polished

Pin ID:

m00029

Orientation:

Laser parallel to c* (0 0 1). Fiducial mark perpendicular to laser is parallel to a [1 0 0].

DOWNLOADS:

To download sample data,
please select a specific
orientation angle.

BROAD SCAN WITH SPECTRAL ARTIFACTS

RRUFF ID:

R040003

Wavelength:

Sample Description:

Unoriented sample

Instrument settings:

Thermo Almega XR 532nm @ 100% of 150mW

DOWNLOADS:

	Raman Data (RAW)
	RRUFF File

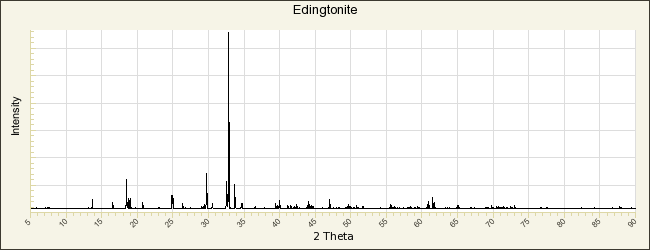

POWDER DIFFRACTION

RRUFF ID:

R040003.1

Sample Description:

Powder

Cell Refinement Output:

a: 9.5275(4)Å b: 9.6432(3)Å c: 6.5115(8)Å
alpha: 90.° beta: 90.° gamma: 90.° Volume: 598.25(6)Å³ Crystal System: orthorhombic

File Type Information

Calculated diffraction file.

File Type Information

Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

File Type Information

Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

DOWNLOADS:

	Cell Refinement Data
	Cell Refinement Output Data
	DIF File
	X-ray Data (XY - Processed)
	RRUFF File
	X-ray Data (XY - RAW)
	RRUFF File

REFERENCES for Edingtonite
American Mineralogist Crystal Structure Database Record: [view record]
Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]
Haidinger W, Turner E (1825) Description of edingtonite, a new mineral species, The Edinburgh Journal of Science, 3, 316-320 [view file]
Galli E (1976) Crystal structure refinement of edingtonite, Acta Crystallographica, B32, 1623-1627
Grice J D, Gault R A, Ansell H G (1984) Edingtonite: the first two Canadian occurrences, The Canadian Mineralogist, 22, 253-258 [view file]
Mazzi F, Galli E, Gottardi G (1984) Crystal structure refinement of two tetragonal edingtonites, Neues Jahrbuch für Mineralogie, Monatshefte, 1984, 373-382
Dunn P J, Ferraiolo J A, Fleischer M, Gobel V, Grice J D, Langley R H, Shigley J E, Vanko D A, Zilczer J A (1985) New mineral names, American Mineralogist, 70, 1329-1335 [view file]
Coombs D S, Alberti A, Armbruster T, Artioli G, Colella C, Galli E, Grice J D, Liebau F, Mandarino J A, Minato H, Nickel E H, Passaglia E, Peacor D R, Quartieri S, Rinaldi R, Ross M, Sheppard R A, Tillmanns E, Vezzalini G, (1997) Recommended nomenclature for zeolite minerals: report of the Subcommittee on Zeolites of the International Mineralogical Association, Commission on New Minerals and Mineral Names, The Canadian Mineralogist, 35, 1571-1606 [view file]
Ståhl K, Hanson J C (1998) An in situ study of the edingtonite dehydration process from X-ray synchrotron powder diffraction, European Journal of Mineralogy, 10, 221-228
Zaitsev A N, Wall F, Le Bas M J (1998) REE-Sr-Ba minerals from the Khibina carbonatites, Kola Peninsula, Russia: their mineralogy, paragenesis and evolution, Mineralogical Magazine, 62(2), 225-250 [view file]
Goryainov S V, Kurnosov A V, Miroshnichenko Y M, Smirnov M B, Kabanov I S (2003) Low-temperature anomalies of infrared band intensities and high-pressure behavior of edingtonite, Microporous and Mesoporous Materials, 61, 283-289 [link]
Gatta G D, Boffa Ballaran T, Comodi P, Zanazzi P F (2004) Comparative compressibility and equation of state of orthorhombic and tetragonal edingtonite, Physics and Chemistry of Minerals, 31, 288-298
