Name: Melanovanadite
RRUFF ID: R060131
Ideal Chemistry: Ca(V5+,V4+)4O10·5H2O
Locality: Minas Ragra, Peru
Source: University of Arizona Mineral Museum 1112 [view label]
Owner: RRUFF
Description: Sprays of black prismatic crystals
Status: The identification of this mineral has been confirmed by X-ray diffraction and chemical analysis
Quick search: [ All Melanovanadite samples (2) ]
CHEMISTRY
RRUFF ID: R060131.2
Sample Description: Microprobe Fragment
Measured Chemistry: (Ca0.73◻0.27)Σ=1(V5+2.54V4+1.46)Σ=4O10·5H2O
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Unoriented sample
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.
Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R060131
Wavelength:
Sample Description: Unoriented sample
Instrument settings: Thermo Almega XR 532nm @ 80% of 150mW
DOWNLOADS:

Raman Data (Processed)
RRUFF File
Raman Data (RAW) View Graph
RRUFF File

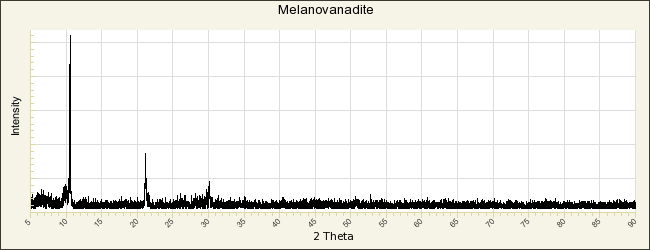

POWDER DIFFRACTION
RRUFF ID: R060131.1
Sample Description: Powder
Cell Refinement Output: a: 6.358(1)Å    b: 17.978(2)Å    c: 6.258(2)Å
alpha: 110.41(1)°    beta: 101.87(2)°    gamma: 82.66(2)°   Volume: 654.9(0)Å3    Crystal System: triclinic
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

DOWNLOADS:

Cell Refinement Data
Cell Refinement Output Data
DIF File
X-ray Data (XY - Processed)
RRUFF File
X-ray Data (XY - RAW) View Graph
RRUFF File
X Min:    X Max:    X Sort:
REFERENCES for Melanovanadite

American Mineralogist Crystal Structure Database Record: [view record]

Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]

Lindgren W (1921) Melanovanadite, a new mineral from Mina Ragra, Pasco, Peru, Proceedings of the National Academy of Sciences, 7, 249-251   [view file]

Lindgren W, Hamilton L F, Palache C (1922) Melanovanadite, a new mineral from Mina Ragra, Pasco, Peru, Proceedings of the National Academy of Sciences, 3, 195-203

Wherry E T (1922) New minerals: new species, American Mineralogist, 7, 162-164   [view file]

Barnes W H, Qurashi M M (1952) Unit cell and space group data for certain vanadium minerals, American Mineralogist, 37, 407-422

Konnert J A, Evans H T (1987) Crystal structure and crystal chemistry of melanovanadite, a natural vanadium bronze, American Mineralogist, 72, 637-644   [view file]

Evans H T, Hughes J M (1990) Crystal chemistry of the natural vanadium bronzes, American Mineralogist, 75, 508-521   [view file]
