Hardystonite R040026

Name: Hardystonite
RRUFF ID: R040026
Ideal Chemistry: Ca2ZnSi2O7
Locality: Franklin, Sussex County, New Jersey, USA
Source: University of Arizona Mineral Museum 9385 [view label]
Owner: RRUFF
Description: White massive
Status: The identification of this mineral has been confirmed by X-ray diffraction and chemical analysis
Mineral Group: [ Melilite (6) ]
RRUFF ID: R040026.2
Sample Description: Microprobe Fragment
Measured Chemistry: (Ca1.98Mn0.02)Σ=2(Zn0.99Al0.01)Σ=1(Si1.99Al0.01)Σ=2O7
Microprobe Data File: [ Download Excel File ]
Sample Description: Sample is oriented, mounted onto a pin and polished
Pin ID: S00031
Orientation: Laser parallel to  c*  (0 0 1).     Fiducial mark perpendicular to laser is parallel to  a   [1 0 0].

  To download sample data,
  please select a specific
  orientation angle.

Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
RRUFF ID: R040026
Sample Description: Unoriented sample; 780 spectrum overwhelmed by fluorescence
Instrument settings: Thermo Almega XR 532nm @ 100% of 150mW

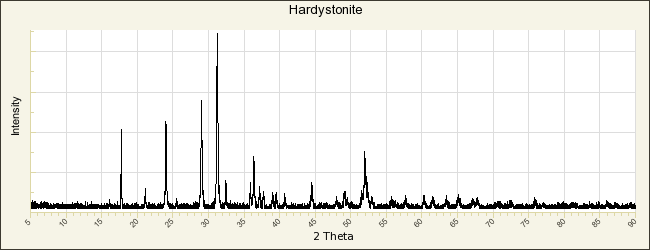

RRUFF ID: R040026.1
Sample Description: Powder
Cell Refinement Output: a: 7.8277(3)Å    b: 7.8277(3)Å    c: 5.0180(3)Å
alpha: 90.°    beta: 90.°    gamma: 90.°   Volume: 307.47(3)Å3    Crystal System: tetragonal
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

X Min:    X Max:    X Sort:
REFERENCES for Hardystonite

American Mineralogist Crystal Structure Database Record: [view record]

Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]

Wolff J E (1899) On hardystonite, a new calcium-zinc silicate from Franklin Furnace, New Jersey, Proceedings of the American Academy of Arts and Sciences, 34, 479-481   [view file]

Wolff J E (1900) Ueber hardystonit, ein neues kalk-zinksilicat von Franklin Furnace, New Jersey, Zeitschrift für Krystallographie und Mineralogie, 32, 1-3   [view file]

Louisnathan S J (1969) Refinement of the crystal structure of hardystonite Ca2ZnSi2O7, Zeitschrift für Kristallographie, 130, 427-437   [view file]

Sharma S K, Yoder H S, Matson D W (1988) Raman study of some melilites in crystalline and glassy states, Geochimica et Cosmochimica Acta, 52, 1961-1967

Shannon R D, Iishi K, Allik T H, Rossman G R, Liebertz J (1992) Dielectric constants of BaO and melilites and the oxide additivity rule, European Journal of Mineralogy, 4, 1241-1249

Mendenbach O, Shannon R D (1997) Refractive indices and optical dispersion of 103 synthetic and mineral oxides and silicates measured by a small-prism technique, Journal of the Optical Society of America B, 14, 3299-3318

Shannon R D, Shannon R C, Medenbach O, Fischer R X (2002) Refractive index and dispersion of fluorides and oxides, Journal of Physical and Chemical Reference Data, 31, 931-970   [view file]
