Name: Axinite-(Mn)
RRUFF ID: R061121
Ideal Chemistry: Ca2Mn2+Al2BSi4O15(OH)
Locality: Franklin, Sussex County, New Jersey, USA
Source: Michael Scott S103393 [view label]
Owner: RRUFF
Description: Honey-yellow massive associated with pink rhodonite
Status: The identification of this mineral has been confirmed by X-ray diffraction and chemical analysis
Quick search: [ All Axinite-(Mn) samples (2) ]
CHEMISTRY
RRUFF ID: R061121.2
Sample Description: Microprobe Fragment
Measured Chemistry: (Ca1.93Mn0.07)Σ=2(Mn2+0.87Zn0.08Fe2+0.05)Σ=1(Al1.95Fe3+0.05)Σ=2BSi4.00O15(OH); OH and B assumed by stoichiometry
Microprobe Data File: [ Download Excel File ]
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Unoriented sample
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.

Raman Mode Analysis
Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R061121
Wavelength:
Sample Description: Unoriented sample
Instrument settings: Thermo Almega XR 532nm @ 100% of 150mW
DOWNLOADS:

Raman Data (RAW) View Graph
RRUFF File

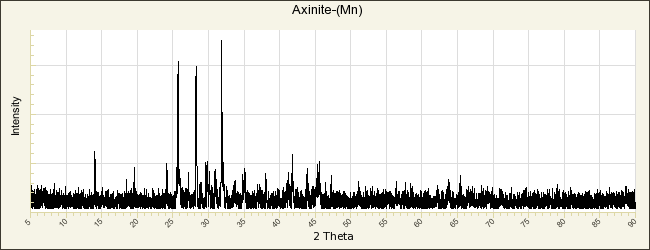

POWDER DIFFRACTION
RRUFF ID: R061121.1
Sample Description: powder
Cell Refinement Output: a: 7.1745(8)Å    b: 9.207(1)Å    c: 8.973(1)Å
alpha: 91.77(1)°    beta: 98.20(1)°    gamma: 77.14(1)°   Volume: 571.94(8)    Crystal System: triclinic
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

DOWNLOADS:

Cell Refinement Data
Cell Refinement Output Data
DIF File
X-ray Data (XY - Processed)
RRUFF File
X-ray Data (XY - RAW) View Graph
RRUFF File
X Min:    X Max:    X Sort:
REFERENCES for Axinite-(Mn)

American Mineralogist Crystal Structure Database Record: [view record]

Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]

Fromme J (1909) Chemisch-mineralogische notizen aus dem radautale, Tschermaks Mineralogische und Petrographische Mitteilungen, 28, 305-328   [view file]

Sanero E, Gottardi G (1968) Nomenclature and crystal-chemistry of axinites, American Mineralogist, 53, 1407-1411   [view file]

Belokoneva E L, Pletnev P A, Spiridonov É M (1997) Crystal structure of low-manganese tinzenite (severginite), Crystallography Reports, 42, 934-937

Andreozzi G B, Lucchesi S, Graziani G, Russo U (2004) Site distribution of Fe2+ and Fe3+ in the axinite mineral group: new crystal-chemical formula, American Mineralogist, 89, 1763-1771   [view file]

Burke E A J (2008) Tidying up mineral names: an IMA-CNMNC scheme for suffixes, hyphens and diacritical marks, The Mineralogical Record, 39, 131-135   [view file]
