Hydroxylherderite R060353

Browse Search Results
<< Previous |  Back to Search Results |  Next >>
Record 1967 of 4216

Name: Hydroxylherderite
RRUFF ID: R060353
Ideal Chemistry: CaBe(PO4)(OH)
Locality: Shigar Valley, northeast of Skardu, Baltistan, Pakistan
Source: Herb Obodda 020 [view label]
Owner: RRUFF
Description: Colorless equant crystal
Status: The identification of this mineral has been confirmed by X-ray diffraction and chemical analysis
Mineral Group: [ Gadolinite (18) ]
Quick search: [ All Hydroxylherderite samples (4) ]
CHEMISTRY
RRUFF ID: R060353.2
Sample Description: Microprobe fragment
Measured Chemistry: (Ca0.99Mn0.01)Σ=1Be1.00P1.00O4((OH)0.52F0.48)Σ=1; trace amounts of Na; Be not measured but assumed by stoichiometry; OH estimated by charge balance
Microprobe Data File: [ Download Excel File ]
RAMAN SPECTRUM
RRUFF ID:
Sample Description: Unoriented sample
DOWNLOADS:

  To download sample data,
  please select a specific
  orientation angle.
Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
BROAD SCAN WITH SPECTRAL ARTIFACTS
RRUFF ID: R060353
Wavelength:
Sample Description: Unoriented Raman on the primary sample
Instrument settings: Thermo Almega XR 532nm @ 100% of 150mW
DOWNLOADS:

Raman Data (RAW) View Graph
RRUFF File

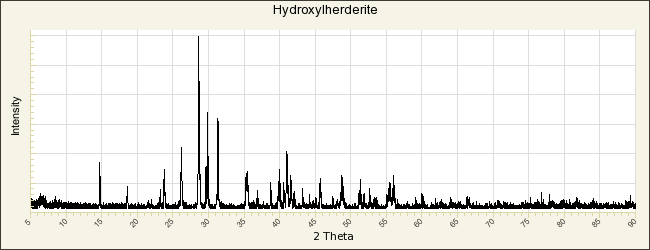

POWDER DIFFRACTION
RRUFF ID: R060353.1
Sample Description: Powder
Cell Refinement Output: a: 9.7632(4)Å    b: 7.6733(4)Å    c: 4.7790(5)Å
alpha: 90.°    beta: 90.26(1)°    gamma: 90.°   Volume: 358.03(4)Å3    Crystal System: monoclinic
  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

DOWNLOADS:

Cell Refinement Data
Cell Refinement Output Data
X-ray Data (XY - Processed)
RRUFF File
X-ray Data (XY - RAW) View Graph
RRUFF File
X Min:    X Max:    X Sort:
REFERENCES for Hydroxylherderite

American Mineralogist Crystal Structure Database Record: [view record]

Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]

Penfield S L (1894) On the crystallization of herderite, American Journal of Science, 147, 329-339   [view file]

Palache C, Berman H, Frondel C (1951) 41.5.4.2 Hydroxyl-herderite [CaBe(PO4)(OH,F)], in The System of Mineralogy, Volume II, Seventh Edition John Wiley and Sons, Inc New York 820-822   [view file]

Fleischer M (1952) New mineral names, American Mineralogist, 37, 359-362   [view file]

Leavens P B, Dunn P J, Gaines R V (1978) Compositional and refractive index variations of the herderite - hydroxyl - herderite series, American Mineralogist, 63, 913-917

Dunn P J, Wolfe C W, Leavens P B, Wilson W E (1979) Hydroxyl-herderite from Brazil and a guide to species nomenclature for the herderite/hydroxyl-herderite series, The Mineralogical Record, 10, 5-11

Long Y (1992) The synthesis and structure of a beryllophosphate crystal with an open framework, Journal of Solid State Chemistry, 101, 199-201

Černá I, Černý P, Selway J B, Chapman R (2002) Paragenesis and origin of secondary beryllophosphates: beryllonite and hydroxylherderite from the BEP granitic pegmatite, southeastern Manitoba, Canada, The Canadian Mineralogist, 40, 1339-1345   [view file]

Burke E A J (2008) Tidying up mineral names: an IMA-CNMNC scheme for suffixes, hyphens and diacritical marks, The Mineralogical Record, 39, 131-135   [view file]

Gatta G D, Jacobsen S D, Vignola P, McIntyre G J, Guastella G, Abate L F (2014) Single-crystal neutron diffraction and Raman spectroscopic study of hydroxylherderite, CaBePO4(OH,F), Mineralogical Magazine, 78, 723-737

Bačík P, Miyawaki R, Atencio D, Cámara F, Fridrichová (2017) Nomenclature of the gadolinite supergroup, European Journal of Mineralogy, 29, 1067-1082
