Heulanditeca R061012 - RRUFF Database: Raman, X-ray, Infrared, and Chemistry

Heulandite-Ca R061012

Name: Heulandite-Ca
RRUFF ID: R061012
Ideal Chemistry: (Ca,Na,K)₅(Si₂₇Al₉)O₇₂·26H₂O
Locality: Patterson, New Jersey, USA
Source: Michael Scott S102804 [view label]
Owner: RRUFF
Description: Aggregate of white or colorless tabular coffin-shaped crystals
Status: The identification of this mineral has been confirmed only by single crystal X-ray diffraction.

Mineral Group: [ Heulandite (13) ]

Quick search: [ All Heulandite-Ca samples (6) ]

CHEMISTRY

RRUFF ID:	R061012.2
Sample Description:	Microprobe Fragment
Measured Chemistry:	(Ca_2.94Na_1.55K_0.51)_Σ=5(Si_28.06Al_7.94)₃₆O₇₂·19.5H₂O
Microprobe Data File:	[ Download Excel File ]

RAMAN SPECTRUM

RRUFF ID:

Sample Description:

Unoriented sample

DOWNLOADS:

To download sample data,
please select a specific
orientation angle.

BROAD SCAN WITH SPECTRAL ARTIFACTS

RRUFF ID:

R061012

Wavelength:

Sample Description:

Unoriented sample

Instrument settings:

Thermo Almega XR 532nm @ 100% of 150mW

DOWNLOADS:

	Raman Data (RAW)
	RRUFF File

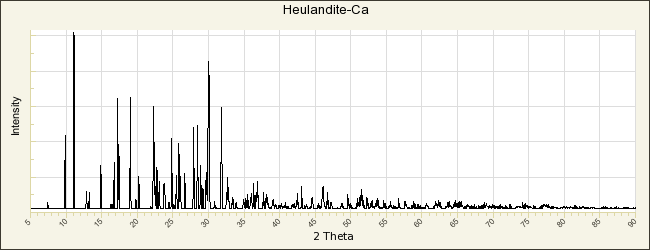

POWDER DIFFRACTION

RRUFF ID:

R061012.9

Sample Description:

Single crystal, powder profile is calculated

Cell Refinement Output:

a: 17.804(8)Å b: 17.920(8)Å c: 7.468(3)Å
alpha: 90° beta: 116.57(2)° gamma: 90° Volume: 2131(1)Å³ Crystal System: monoclinic

File Type Information

Calculated diffraction file.

File Type Information

Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

DOWNLOADS:

	DIF File
	X-ray Data (XY - RAW)
	RRUFF File

REFERENCES for Heulandite-Ca
American Mineralogist Crystal Structure Database Record: [view record]
Brooke H J (1822) On the comptonite of Vesuvius, the brewsterite of Scotland, the stilbite and the heulandite, Edinburgh Philosophy Journal, 6, 112-115 [view file]
Alberti A (1972) On the crystal structure of the zeolite heulandite, Tschermaks Mineralogische und Petrographische Mitteilungen, 18, 129-146
Vezzalini G, Quartieri S, Rossi A, Alberti A (1994) Occurrence of zeolites from Northern Victoria Land (Antarctica), Terra Antartica, 1, 96-99
Coombs D S, Alberti A, Armbruster T, Artioli G, Colella C, Galli E, Grice J D, Liebau F, Mandarino J A, Minato H, Nickel E H, Passaglia E, Peacor D R, Quartieri S, Rinaldi R, Ross M, Sheppard R A, Tillmanns E, Vezzalini G, (1997) Recommended nomenclature for zeolite minerals: report of the Subcommittee on Zeolites of the International Mineralogical Association, Commission on New Minerals and Mineral Names, The Canadian Mineralogist, 35, 1571-1606 [view file]
Yang P, Stolz J, Armbruster T, Gunter M E (1997) Na, K, Rb, and Cs exchange in heulandite single crystals: diffusion kinetics, American Mineralogist, 82, 517-525 [view file]
Jambor J L, Grew E S, Roberts A C (1998) New mineral names, American Mineralogist, 83, 1347-1352 [view file]
Akizuki M, Kudoh Y, Nakamura S (1999) Growth texture and symmetry of heulandite-Ca from Poona, India, The Canadian Mineralogist, 37, 1307-1312 [view file]
Comodi P, Gatta G D, Zanazzi P F (2001) High-pressure structural behaviour of heulandite, European Journal of Mineralogy, 13, 497-505
