R070633 - RRUFF Database: Raman, X-ray, Infrared, and Chemistry

Serendibite R070633

Name: Serendibite
RRUFF ID: R070633
Ideal Chemistry: Ca₄[Mg₆Al₆]O₄[Si₆B₃Al₃O₃₆]
Locality: Burma
Source: www.multicolour.com [view label]
Owner: RRUFF
Description: Black, dark blue under strong light, polished gemstone
Status: The identification of this mineral has been confirmed by X-ray diffraction and chemical analysis

Mineral Group: [ Sapphirine (12) ]

Quick search: [ All Serendibite samples (3) ]

CHEMISTRY

RRUFF ID:	R070633.2
Sample Description:	Microprobe Fragment
Measured Chemistry:	(Ca_1.91Na_0.09)_Σ=2(Mg_2.59Al_0.18Fe²⁺_0.11Fe³⁺_0.11)_Σ=3Al_4.50B_1.50(Si_2.78Al_0.22)_Σ=3O₂₀ ; B₂O₃ estimated by charge balance; Fe²⁺ and Fe³⁺ splitted by charge balance
Microprobe Data File:	[ Download Excel File ]

RAMAN SPECTRUM

RRUFF ID:

Sample Description:

Unoriented sample

DOWNLOADS:

To download sample data,
please select a specific
orientation angle.

BROAD SCAN WITH SPECTRAL ARTIFACTS

RRUFF ID:

R070633

Wavelength:

Sample Description:

Unoriented sample

Instrument settings:

Thermo Almega XR 532nm @ 50% of 150mW

DOWNLOADS:

	Raman Data (RAW)
	RRUFF File

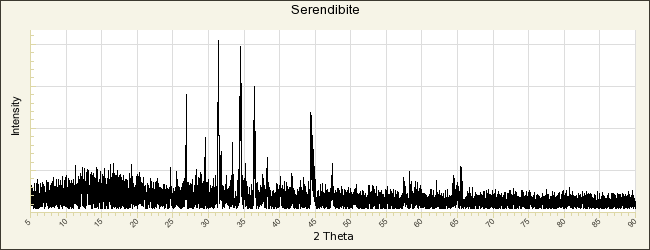

POWDER DIFFRACTION

RRUFF ID:

R070633.1

Sample Description:

Powder

Cell Refinement Output:

a: 10.0181(8)Å b: 10.4009(8)Å c: 8.6435(8)Å
alpha: 106.472(6)° beta: 95.98(1)° gamma: 124.39(1)° Volume: 671.8(1)Å³ Crystal System: triclinic

File Type Information

Calculated diffraction file.

File Type Information

Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

File Type Information

Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

DOWNLOADS:

	Cell Refinement Data
	Cell Refinement Output Data
	DIF File
	X-ray Data (XY - Processed)
	RRUFF File
	X-ray Data (XY - RAW)
	RRUFF File

REFERENCES for Serendibite
American Mineralogist Crystal Structure Database Record: [view record]
Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]
Prior G T, Coomáraswámy A K (1903) Serendibite, a new borosilicate from Ceylon, Mineralogical Magazine, 13, 224-227 [view file]
Hutcheon I, Gunter A E, Lecheminant A N (1977) Serendibite from Penrhyn Group marble, Melville Peninsula, District of Franklin, The Canadian Mineralogist, 15, 108-112 [view file]
Van Derveer D G, Swihart G H, Sen Gupta P K, Grew E S (1993) Cation occupancies in serendibite: a crystal structure study, American Mineralogist, 78, 195-203 [view file]
Burt D M (1994) Vector representation of some mineral compositions in the aenigmatite group, with special reference to hogtuvaite, The Canadian Mineralogist, 32, 449-457 [view file]
Jensen B B (1996) Solid solution among members of the aenigmatite group, Mineralogical Magazine, 60, 982-986 [view file]
Kunzmann T (1999) The aenigmatite-rhönite mineral group, European Journal of Mineralogy, 11, 743-756 [view file]
Grew E S, Hålenius U, Pasero M, Barbier J (2008) Recommended nomenclature for the sapphirine and surinamite group (sapphirine supergroup), Mineralogical Magazine, 72, 839-876 [view file]
Belley P M, Grice J D, Fayek M, Kowalski P M, Grew E S (2014) A new occurrence of the borosilicate serendibite in tourmaline-bearing calc-silicate rocks, Portage-du-Fort marble, Grenville province, Québec: evolution of boron isotope and tourmaline compositions in a metamorphic context, The Canadian Mineralogist, 52, 595-615
Grice J D, Belley P M, Fayek M (2014) Serendibite, a complex chemical borosilicate mineral from Pontiac, Quebec: Description, chemical composition, and crystallographic data, The Canadian Mineralogist, 52, 1-14 [view file]
