Monazite-(Ce) R040106

Browse Search Results
<< Previous |  Back to Search Results |  Next >>
Record 1 of 6

Name: Monazite-(Ce)
RRUFF ID: R040106
Ideal Chemistry: Ce(PO4)
Locality: Angola
Source: University of Arizona Mineral Museum 5580 [view label]
Owner: RRUFF
Description: Brown massive fragment
Status: The identification of this mineral has been confirmed by X-ray diffraction and chemical analysis
Mineral Group: [ Monazite (11) ]
Quick search: [ All Monazite-(Ce) samples (5) ]
RRUFF ID: R040106.2
Sample Description: Microprobe Fragment
Measured Chemistry: (Ce0.41La0.17Nd0.17Th0.14Ca0.06Y0.04)(P0.95Si0.05)O4
Microprobe Data File: [ Download Excel File ]
Sample Description: Sample is oriented, mounted onto a pin and polished
Pin ID: M00462
Orientation: Laser parallel to  -a*  (-1 0 0).     Fiducial mark perpendicular to laser is parallel to  b   [0 1 0].

  To download sample data,
  please select a specific
  orientation angle.

Direction of polarization of laser relative to fiducial mark:
X Min:    X Max:    X Sort:
RRUFF ID: R040106
Sample Description: Unoriented sample; 785 spectrum overwhelmed by fluorescence
Instrument settings: Thermo Almega XR 532nm @ 100% of 150mW

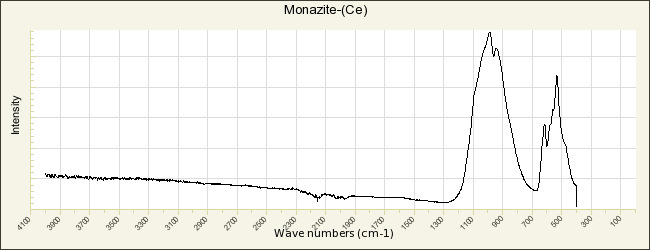

INFRARED SPECTRUM (Attenuated Total Reflectance)
RRUFF ID: R040106.1
Instrument settings: SensIR Durascope on a Nicolet Magna 860 FTIR
X Min:    X Max:    X Sort:

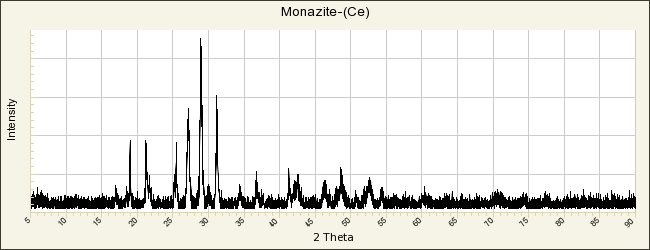

RRUFF ID: R040106.1
Sample Description: Powder
Cell Refinement Output: a: 6.757(2)Å    b: 6.9840(9)Å    c: 6.481(1)Å
alpha: 90.°    beta: 103.75(2)°    gamma: 90.°   Volume: 297.1(1)Å3    Crystal System: monoclinic
  File Type Information Close
Calculated diffraction file.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

  File Type Information Close
Output file from the Bruker D8 Advance instrument. Includes device headers and XY data.

X Min:    X Max:    X Sort:
REFERENCES for Monazite-(Ce)

American Mineralogist Crystal Structure Database Record: [view record]

Anthony J W, Bideaux R A, Bladh K W, and Nichols M C (1990) Handbook of Mineralogy, Mineral Data Publishing, Tucson Arizona, USA, by permission of the Mineralogical Society of America. [view file]

Breithaupt J F A (1829) Neue krystallographische Bestimmung und mineralogische Charakteristik verschiedener Mineralspecien, II. Ueber den Monazit, eine neue Specie des Mineral-Reichs, Journal für Chemie und Physik, 55, 296-306   [view file]

Rammelsberg C (1877) Ueber Nephelin, Monacit und Silberwismuthglanz, Zeitschrift der Deutschen Geologischen Gesellschaft, 29, 77-81   [view file]

Mooney R C L (1948) Crystal structures of a series of rare earth phosphates, Journal of Chemical Physics, 16, 1003-1003

Claringbull G F (1953) Mineralogical Society (London), American Mineralogist, 38, 734-737   [view file]

Fleischer M (1954) New mineral names, American Mineralogist, 39, 402-408   [view file]

Kato T (1958) A study on monazite from the Ebisu mine, Gifu Prefecture, Mineralogical Journal, 4, 224-235   [view file]

McKie D (1962) Goyazite and florencite from two African carbonatites, Mineralogical Magazine, 33, 281-297   [view file]

Levinson A A (1966) A system of nomenclature for rare-earth minerals, American Mineralogist, 51, 152-158   [view file]

Haapala I, Ervamaa P, Löfgren A, Ojanperä P (1969) An occurrence of monazite in Puumala, Eastern Finland, Bulletin de la Commission Géologique de Findlande, 41, 117-124   [view file]

Petruk W, Owens D R (1975) Monazite from the Mount Pleasant deposit, New Brunswick, The Canadian Mineralogist, 13, 298-299   [view file]

Nickel E H, Mandarino J A (1987) Procedures involving the IMA Commission on New Minerals and Mineral Names and guidelines on mineral nomenclature, American Mineralogist, 72, 1031-1042   [view file]

Demartin F, Pilati T, Diella V, Donzelli S, Gramaccioli C M (1991) Alpine monazite: further data, The Canadian Mineralogist, 29, 61-67   [view file]

Pinckston R D, Smith D G W (1994) Mineralogy of the Lake zone, Thor Lake rare-metals deposit, N.W.T., Canada, Canadian Journal of Earth Sciences, 32, 516-532

Ni Y, Hughes J M, Mariano A N (1995) Crystal chemistry of the monazite and xenotime structures, American Mineralogist, 80, 21-26   [view file]

Van Emden B, Thornber M R, Graham J, Lincoln F J (1997) The incorporation of actinides in monazite and xenotime from placer deposits in Western Australia, The Canadian Mineralogist, 35, 95-104   [view file]

Chakhmouradian A R, Mitchell R H (1999) Niobian ilmenite, hydroxylapatite and sulfatian monazite: alternative hosts for incompatible elements in calcite kimberlite from Internatsional'naya, Yakutia, The Canadian Mineralogist, 37, 1177-1189   [view file]

Zhu X K, O'Nions R K (1999) Monazite chemical composition: some implications for monazite geochronology, Contributions to Mineralogy and Petrology, 137, 351-363

Teterin Y A, Utkin I O, Melnikov I V, Lebedev A M, Teterin A Y, Ivanov K E, Nikitin A S, Vukchevich L (2000) X-ray photoelectron study of thorium silicate ThSiO4·nH2O and uranium silicate USiO4·nH2O, Journal of Structural Chemistry, 41, 965-971

Linthout K (2007) Tripartite division of the system 2REEPO4—CaTh(PO4)2—2ThSiO4, discreditation of brabantite, and recognition of cheralite as the name for members dominated by CaTh(PO4)2, The Canadian Mineralogist, 45, 503-508   [view file]

Nasdala L, Grötzschel R, Probst S, Bleisteiner B (2010) Irradiation damage in monazite-(Ce): An example to establish the limits of Raman confocality and depth resolution, The Canadian Mineralogist, 48, 351-359   [view file]

Pršek J, Ondrejka M, Bačík P, Budzyń B, Uher P (2010) Metamorphic-hydrothermal REE minerals in the Bacúch Magnetite Deposit, Western Carpathians, Slovakia: (Sr,S)-rich monazite-(Ce) and Nd-dominant hingganite, The Canadian Mineralogist, 48, 81-94   [view file]

Guastoni A, Pozzi G, Secco L, Schiazza M, Pennacchioni G, Fioretti A M, Nestola F (2016) Monazite-(Ce) and xenotime-(Y) from an LCT, NYF tertiary pegmatite field: Evidence from a regional study in the Central Alps (Italy and Switzerland), The Canadian Mineralogist, 54, 863-877

Abe T, Kuribayashi T, Nakamura M (2017) Infrared spectroscopic study of OH defects in monazite, European Journal of Mineralogy, 29, 949-957

Giebel R J, Gauert C D K, Marks M A W, Costin G, Markl G (2017) Multi-stage formation of REE minerals in the Palabora Carbonatite Complex, South Africa, American Mineralogist, 102, 1218-1233

Seydoux-Guillaume A M, Deschanels X, Baumier C, Neumeier S, Weber W J, Peuget S (2018) Why natural monazite never becomes amorphous: Experimental evidence for alpha self-healing, American Mineralogist, 103, 824-827

Trail D (2018) Redox-controlled dissolution of monazite in fluids and implications for phase stability in the lithosphere, American Mineralogist, 103, 453-461

Alves F E A, Neumann R, Ávila C A, Faulstich F R L (2019) Monazite-(Ce) and xenotime-(Y) microinclusions in fluorapatite of the pegmatites from the Volta Grande mine, Minas Gerais state, southeast Brazil, as witnesses of the dissolution– reprecipitation process, Mineralogical Magazine, 83, 595-606

Broom-Fendley S, Smith M P, Andrade M B, Ray S, Banks D A, Loye E, Atencio D, Pickles J R, Wall F (2019) Sulfur-bearing monazite-(Ce) from the Eureka carbonatite, Namibia: oxidation state, substitution mechanism, and formation conditions, Mineralogical Magazine, 84, 35-48

Rusiecka M K, Baker D R (2019) Monazite and xenotime solubility in hydrous, boron-bearing rhyolitic melt, American Mineralogist, 104, 1117-1130

Pagliaro F, Lotti P, Guastoni A, Rotiroti N, Battiston T, Gatta G D (2022) Crystal chemistry and miscibility of chernovite-(Y), xenotime-(Y), gasparite-(Ce) and monazite-(Ce) from Mt. Cervandone, Western Alps, Italy, Mineralogical Magazine, 86, 150-167
